630-05G

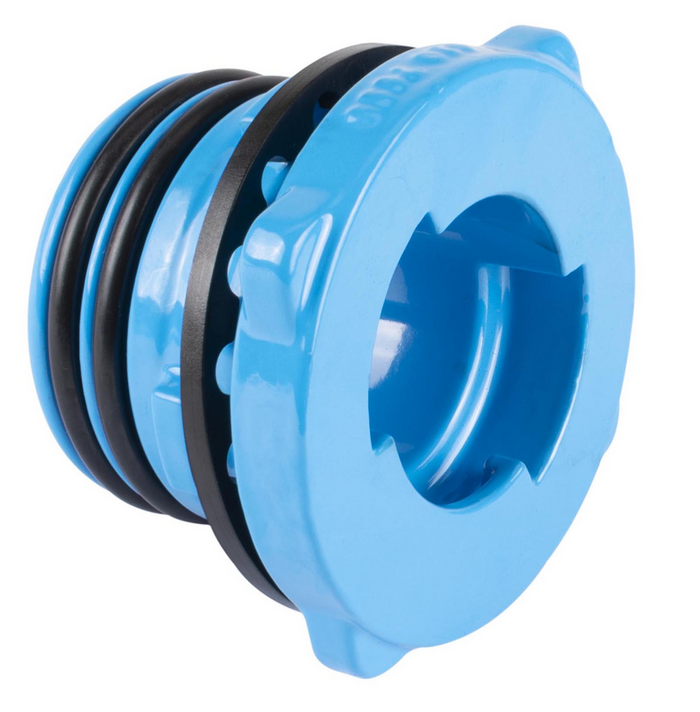

Reduction fitting with ZAK® spigot end and ZAK® socket, reduced for gas

6307004635

Product of Hawle (Ord. No. 630-05G) or equivalent
Transition fitting from ZAK 46 to ZAK 34, with one ZAK spigot end and locking ring to establish a form-locked connection with pipe fittings and fittings with ZAK sockets, and with one ZAK socket to establish a form-locked connection with pipe fittings and fittings with ZAK spigot ends, test regulation: DVGW W 534.

Material: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476 (P) and DIN 30677-2 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 16 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)

Medium: gas
Max. operating pressure: 10 bar
