647-00G

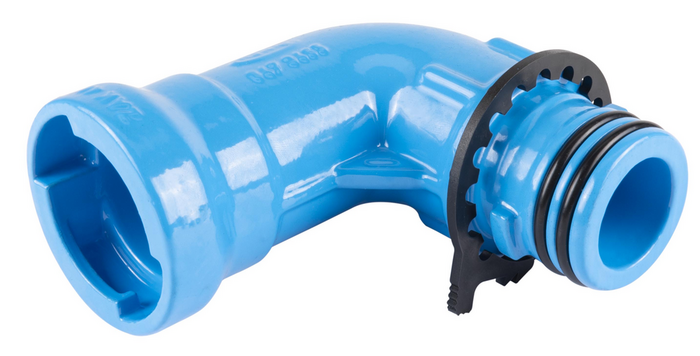

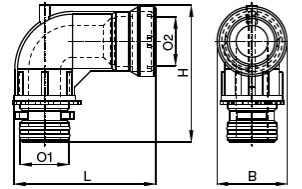

Angle 90° with ZAK® tip end and ZAK® sleeve for gas

6473460465

Product: Hawle (Ord. No. 647-00G) or equivalent
Rotating elbow fitting 90 degrees, with one ZAK spigot end and locking ring to established a form-locked connection with valves and pipe fittings with ZAK sockets, and with one ZAK socket to establish a form-locked connection with valves and pipe fittings with ZAK spigot ends, test regulation: DVGW W 534.

Material: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476 (P) and DIN 30677-2 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 16 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)

Medium: gas
Max. operating pressure: 10 bar
