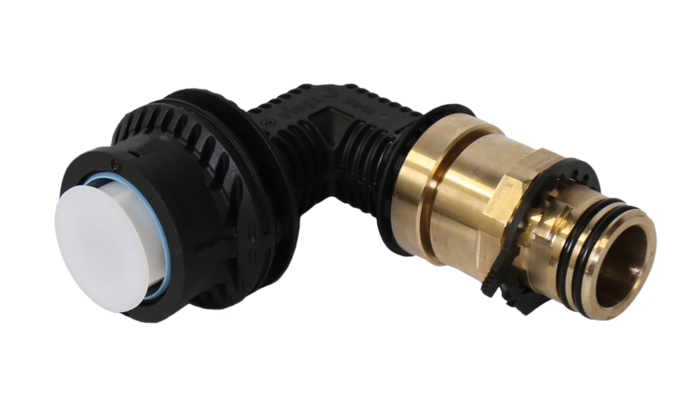

ZAK-Press-Fit® K angle 90° with rotatable outlet
| Material: |
Geopress K Housing: PA-GF Clamping ring, snap ring: POM Protective cap: PE Connector: Silicon Bronze O-ring: EPDM according to KTW-BWGL for water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
The ZAK-Press-FIT® K angle 90° with ZAK® tip end serves as a transition from the Viega Geopress K system to the Hawle
ZAK® system.
On the one hand, with ZAK® tip end for a form-fitting connection with ZAK® tapping fittings, and on the other hand, with Viega Geopress K-socket for the connection of PE pipes SDR 11 according to DIN EN 12201/DIN 8074 and PE-X pipes SDR 11 according to DIN 16893.
No separate support sleeve is required for the ZAK-Press-FIT® K system, as this is already in the transition piece (angle)
is integrated.
The angle can be continuously rotated 360°.
For underground pipeline construction and distribution systems in the drinking water supply. No application in the installation.
|
Order Nr.
|
L |
L1 |
B |
H |
Outlet O |
D |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
6474032046
|
121 mm | 114 mm | 63 mm | 153 mm | ZAK 46 | 32 mm | 0,00 kg | |||
|
6474040046
|
137 mm | 128 mm | 70 mm | 173 mm | ZAK 46 | 40 mm | 0,00 kg | |||
|
6474050046
|
164 mm | 152 mm | 87 mm | 197 mm | ZAK 46 | 50 mm | 0,00 kg | |||
|
6474063046
|
176 mm | 159 mm | 97 mm | 223 mm | ZAK 46 | 63 mm | 0,00 kg |
|
Further information
|
|---|
| General instruction for Fittings |
