For PE pipes with thin walls (up to 3 mm wall thickness) and low interal pressure we recommend using a support liner
404-00

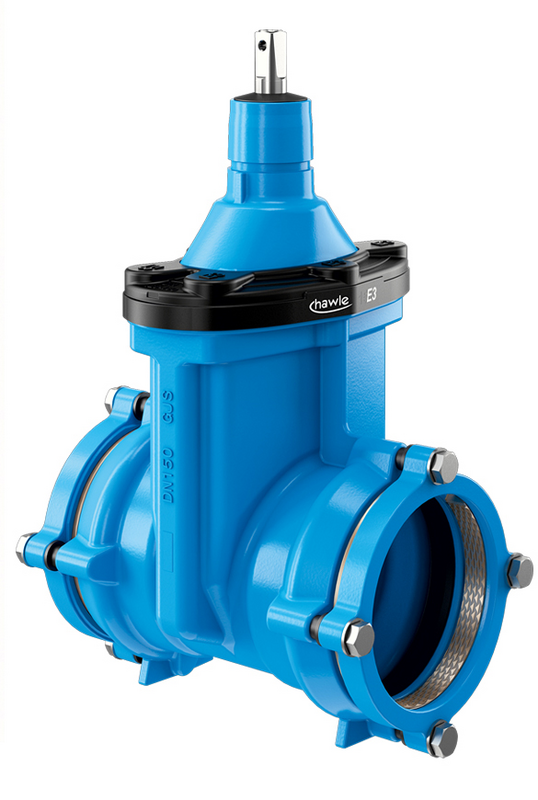

Gate valve "E2" and "E3" - System 2000


Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge nut: brass Wedge: GJS-400, EPDM inside and outside acc. to KTW-BWGL for water Gaskets: EPDM acc. to KTW-BWGL for water Grip ring: brass for DN 50 - 250, red brass for DN 300 and higher |
---|---|
Max. operating Pressure: | Potable water: 16 bar |
Medium | Water |
Shut-off valve with two push-fit sockets, for the restraint connection with PE pipes grades PE 80, PE 100 and PVC pipes. Ideal for use as section valve.
The pipe is sealed via lip gasket. Due to the contour of the lip gasket the pipe end can be pushed into the sealing chamber without great effort. The restraint joint acts independently of the pipe gasket and is ensured by tightening the lock ring.
When connecting PE pipes a support liner (model no. 590) must be used.
Order Nr.
|
DN |
L |
d |
Type / Outlet |
L1 |
H |
Medium | Weight | Specification | Basket |
---|---|---|---|---|---|---|---|---|---|---|
4040500633
|
50 | 225 mm | 85 mm | 235 mm | 8,80 kg | |||||
4040650753
|
65 | 240 mm | 85 mm | 305 mm | 13,70 kg | |||||
4040800900
|
80 | 240 mm | 90 mm | 90 mm | 335 mm | 16,40 kg | ||||
4041001103
|
100 | 250 mm | 90 mm | 345 mm | 20,00 kg | |||||
4041001253
|
100 | 260 mm | 90 mm | 345 mm | 24,40 kg | |||||
4041251253
|
125 | 280 mm | 90 mm | 420 mm | 30,08 kg | |||||
4041251400
|
125 | 280 mm | 140 mm | 95 mm | 475 mm | 34,30 kg | ||||
4041501603
|
150 | 315 mm | 110 mm | 435 mm | 36,50 kg | |||||
4041501803
|
150 | 340 mm | 120 mm | 435 mm | 43,60 kg | |||||
4042002003
|
200 | 365 mm | 130 mm | 540 mm | 65,40 kg | |||||
4042002253
|
200 | 365 mm | 130 mm | 540 mm | 69,50 kg | |||||
4042502503
|
250 | 400 mm | 145 mm | 650 mm | 104,50 kg | |||||
4042502803
|
250 | 420 mm | 150 mm | 650 mm | 112,60 kg | |||||
4043003153
|
300 | 470 mm | Type E3 | 175 mm | 735 mm | 171,00 kg |
