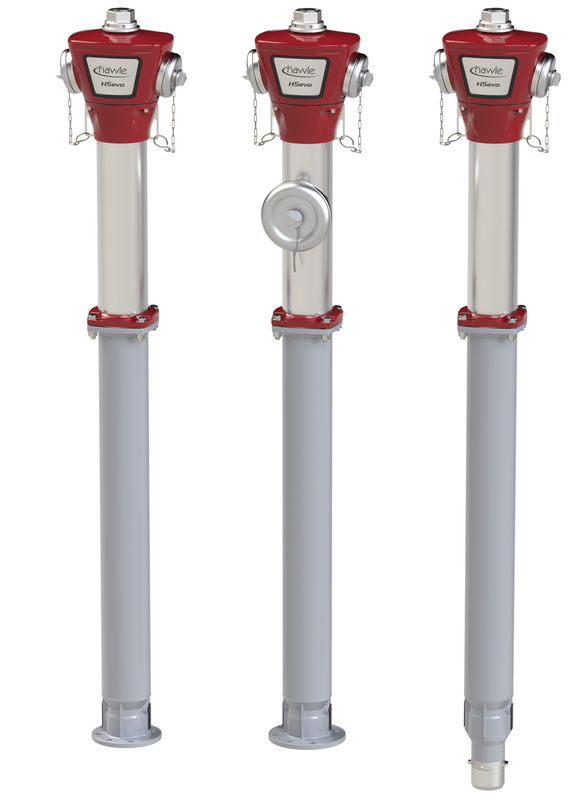

Hawle H5evo® above-ground hydrant made of stainless steel with predetermined breaking point

Above-ground hydrants are used to supply water for extinguishing purposes in the municipal and industrial sector. Due to its flow-optimized head design and concurrently lower pressure loss, Hawle H5evo® above-ground hydrants can be used in all instances that require large quantities of extinguishing water.

In the Hawle H5evo® above-ground hydrant, the shut-off function is provided by a PUR-coated shut-off cone. The PUR coating of the shut-off cone protects hydrants against damage caused by abrasive substances in potable water.
The Hawle H5evo® above-ground hydrant has a defined limit stop for opening and closing.

When the Hawle H5evo® above-ground hydrant opens, the shut-off body moves up and then closes first the drain holes and then the throughput passage. Water rises and flows upward, all around the shut-off body.
During closing, the shut-off body moves to the bottom limit stop position until the throughput passage is shut off completely. After 15 revolutions, the residual water, which may still remain in the hydrant after closing, can flow out into the soil through the drainage holes in and the drainage element.

The integrated stones catcher on the shut-off cone of the hydrant prevents damage to the shut-off element from stones and other foreign particles. This ensures a permanent and reliable shut-off function.
The standpipe and hydrant head each remain independently rotatable by 360° even after installation.

Outlet: Flange, BAIO® spigot end

The Hawle H5evo® above-ground hydrant is equipped by default with a predetermined breaking point. The predetermined breaking point ensures that the hydrant remains completely sealed in the case of an accident. Four spare screws in the hydrant head allow for quick, easy repairs.
The Hawle H5evo® above-ground hydrant is corrosion-resistant against disinfectants approved for use with potable water.
Hawle H5evo® above-ground hydrants are made exclusively from high-quality, stainless materials. The coating of the lower part of the hydrant column, i.e. up to the predetermined breaking point, offers additional protection. The materials have been selected to ensure a high level of functionality as well as a consistent good appearance for the entire duration of the hydrant’s lifespan.
The flow rate at a differential pressure of 1 bar is for all Hawle above-ground hydrant above the value required by EN 14384.

read more reduce
Material: Hydrant head: GJS-400, UV-resistant coated, red RAL 3003
Column: stainless steel with epoxy powder coating up to the predetermined breaking point
Actuator/spindle: stainless steel
Shut-off cone: TPU/Grivory
Spindle holder: stainless steel
Seals: EPDM/PUR according to UBA-KTW-BWGL
Max. operating Pressure: Potable water: 16 bar
Medium Water

Above-ground hydrants are used to supply water for extinguishing purposes in the municipal and industrial sector. Due to its flow-optimized head design and concurrently lower pressure loss, Hawle H5evo® above-ground hydrants can be used in all instances that require large quantities of extinguishing water.

In the Hawle H5evo® above-ground hydrant, the shut-off function is provided by a PUR-coated shut-off cone. The PUR coating of the shut-off cone protects hydrants against damage caused by abrasive substances in potable water.
The Hawle H5evo® above-ground hydrant has a defined limit stop for opening and closing.

When the Hawle H5evo® above-ground hydrant opens, the shut-off body moves up and then closes first the drain holes and then the throughput passage. Water rises and flows upward, all around the shut-off body.
During closing, the shut-off body moves to the bottom limit stop position until the throughput passage is shut off completely. After 15 revolutions, the residual water, which may still remain in the hydrant after closing, can flow out into the soil through the drainage holes in and the drainage element.

The integrated stones catcher on the shut-off cone of the hydrant prevents damage to the shut-off element from stones and other foreign particles. This ensures a permanent and reliable shut-off function.
The standpipe and hydrant head each remain independently rotatable by 360° even after installation.

Outlet: Flange, BAIO® spigot end

The Hawle H5evo® above-ground hydrant is equipped by default with a predetermined breaking point. The predetermined breaking point ensures that the hydrant remains completely sealed in the case of an accident. Four spare screws in the hydrant head allow for quick, easy repairs.
The Hawle H5evo® above-ground hydrant is corrosion-resistant against disinfectants approved for use with potable water.
Hawle H5evo® above-ground hydrants are made exclusively from high-quality, stainless materials. The coating of the lower part of the hydrant column, i.e. up to the predetermined breaking point, offers additional protection. The materials have been selected to ensure a high level of functionality as well as a consistent good appearance for the entire duration of the hydrant’s lifespan.
The flow rate at a differential pressure of 1 bar is for all Hawle above-ground hydrant above the value required by EN 14384.

Contacts
Wish List
Order Nr.
*)
DN
Operating pressure max.
Pipe cover depth
Outlet B
Outlet A
Connection
C outlet
h1
h2
h4
h3
 Medium Weight Specification Basket
5190800110
   80 Potable water: 16 bar 1,00 2   Flange DN 80   1000 mm 820 mm 1852 mm   0,00 kg
5190800112
   80 Potable water: 16 bar 1,25 2   Flange DN 80   1000 mm 820 mm 2102 mm   0,00 kg
5190800115
   80 Potable water: 16 bar 1,50 2   Flange DN 80   1000 mm 820 mm 2352 mm   0,00 kg
5190800210
   80 Potable water: 16 bar 1,00 1   Flange DN 80 2 1000 mm 820 mm 1852 mm 327 mm 0,00 kg
5190800212
   80 Potable water: 16 bar 1,25 1   Flange DN 80 2 1000 mm 820 mm 2102 mm 327 mm 0,00 kg
5190800215
   80 Potable water: 16 bar 1,50 1   Flange DN 80 2 1000 mm 820 mm 2352 mm 327 mm 0,00 kg
5190810110
 1) 80 Potable water: 16 bar 1,00 2   Spigot end DN 80   1000 mm 820 mm 1993 mm   0,00 kg
5190810112
 1) 80 Potable water: 16 bar 1,25 2   Spigot end DN 80   1000 mm 820 mm 2243 mm   0,00 kg
5190810115
 1) 80 Potable water: 16 bar 1,50 2   Spigot end DN 80   1000 mm 820 mm 2493 mm   0,00 kg
5191000110
   100 Potable water: 16 bar 1,00 2   Flange DN 100   1000 mm 820 mm 1852 mm   0,00 kg
5191000112
   100 Potable water: 16 bar 1,25 2   Flange DN 100   1000 mm 820 mm 2102 mm   0,00 kg
5191000115
   100 Potable water: 16 bar 1,50 2   Flange DN 100   1000 mm 820 mm 2352 mm   0,00 kg
5191000210
 2) 100 Potable water: 16 bar 1,00 2 1 Flange DN 100   1000 mm 820 mm 1852 mm 327 mm 0,00 kg
5191000212
 2) 100 Potable water: 16 bar 1,25 2 1 Flange DN 100   1000 mm 820 mm 2102 mm 327 mm 0,00 kg
5191000215
 2) 100 Potable water: 16 bar 1,50 2 1 Flange DN 100   1000 mm 820 mm 2352 mm 327 mm 0,00 kg
Wish List
1)
In the version with a BAIO® tip end, a dirt and anti-rotation device (Order No.: 490.080.0800) must be used.
2)
Suitable gate valve for A-outlet Best.Nr.: 518,900,1000. Price on request.

Hydrant head in any desired RAL colour possible - price on request.

Pressure display at the hydrant head possible - price on request.

Seawater version on request.
