525-01

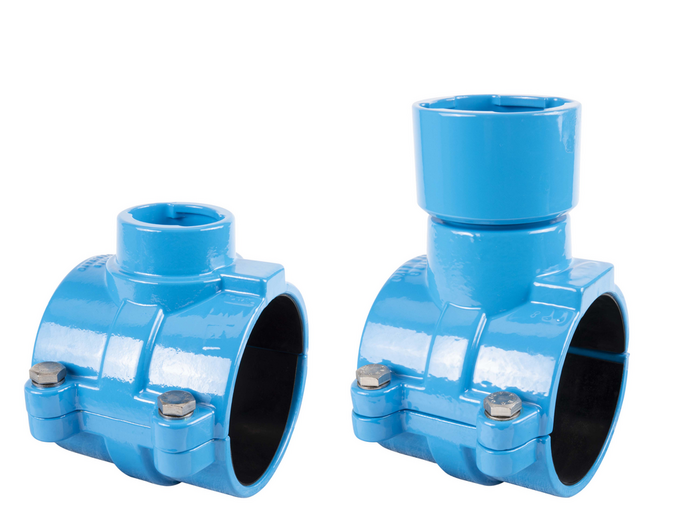

HAKU pipe saddle with ZAK® outlet

HAKU pipe saddles with ZAK® socket outlet are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

The ZAK® socket outlet serves the purpose of establishing a restraint connection with valves and fittings with ZAK® spigot end.

In combination with the shut-off adaptor (model no. 372-01) and a pipe drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the main line can be drilled without difficulty even with the main line in service.

read more reduce
Material: GJS-400, Hawle epoxy powder coated
Gaskets: EPDM for potable water or NBR for gas
Max. operating Pressure: Gas: 1 bar (only PVC)
Potable water: 16 bar
Sewage water: 16 bar
Medium Water / Gas / Sewage

HAKU pipe saddles with ZAK® socket outlet are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

The ZAK® socket outlet serves the purpose of establishing a restraint connection with valves and fittings with ZAK® spigot end.

In combination with the shut-off adaptor (model no. 372-01) and a pipe drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the main line can be drilled without difficulty even with the main line in service.

Contacts
Wish List
Order Nr.
*)
L

B
D

H
Borehole max.
Outlet O
 Medium Weight Specification Basket
5250630460
   125 mm 100 mm 63 mm 111 mm 36 mm ZAK 46 1,90 kg
5250750460
   135 mm 110 mm 75 mm 125 mm 36 mm ZAK 46 2,30 kg
5250900460
   150 mm 120 mm 90 mm 142 mm 36 mm ZAK 46 3,00 kg
5250900690
 1) 2) 150 mm 120 mm 90 mm 201 mm 45 mm ZAK 69 4,20 kg
5251100460
   170 mm 120 mm 110 mm 163 mm 36 mm ZAK 46 3,10 kg
5251100690
 1) 2) 170 mm 120 mm 110 mm 221 mm 45 mm ZAK 69 4,70 kg
5251250460
   190 mm 120 mm 125 mm 172 mm 36 mm ZAK 46 3,80 kg
5251250690
 1) 2) 191 mm 121 mm 125 mm 237 mm 45 mm ZAK 69 5,20 kg
5251400460
   205 mm 120 mm 140 mm 195 mm 36 mm ZAK 46 4,40 kg
5251400690
 1) 2) 205 mm 120 mm 140 mm 252 mm 45 mm ZAK 69 5,70 kg
5251600460
   230 mm 120 mm 160 mm 215 mm 36 mm ZAK 46 4,90 kg
5251600690
 1) 2) 230 mm 120 mm 160 mm 272 mm 45 mm ZAK 69 5,90 kg
5251800460
   235 mm 120 mm 180 mm 234 mm 36 mm ZAK 46 5,30 kg
5251800690
 1) 2) 235 mm 120 mm 180 mm 291 mm 45 mm ZAK 69 0,00 kg
5252250460
   300 mm 120 mm 225 mm 280 mm 36 mm ZAK 46 7,60 kg
5252250690
 1) 2) 300 mm 120 mm 225 mm 340 mm 45 mm ZAK 69 9,00 kg
Wish List
1)
Factory assembled, consisting of HAKU pipe saddle and fitting with ZAK 69 connection.
2)
By drilling service valve is a special Drilling spindle extension necessary.

Product numbers for gas on request.
