Double tee cross with vertical outlet - BAIO® system

In combination with spigot socket valves, the double tee cross with BAIO® double function sockets at all ends for connecting BAIO® spigot ends, DCI, steel, PE and PVC pipes permits to establish valve junctions of up to 4 valves.

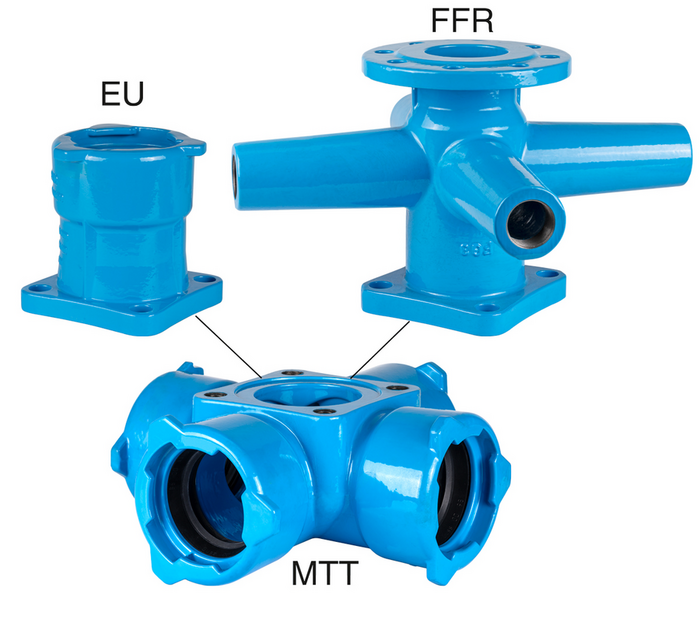

The vertical outlet serves the purpose of integrating hydrants or air valve sets in connection with a flanged socket (see figure/table). Alternatively, the double flanged taper (see figure/table) with female thread outlets at the vertical outlets can be used to connect service valves.

Gaskets:
DCI pipes: BLD® gasket (standard)
PE/PVC pipes: GKS gasket Ord.-No. 529-01 (please specify clock position for the factory installation of the GKS gasket)

read more reduce
Material: GJS-400, Hawle epoxy powder coated
Gasket: EPDM acc. to KTW-BWGL for water
Max. operating Pressure: Potable water: 16 bar
Medium Water

In combination with spigot socket valves, the double tee cross with BAIO® double function sockets at all ends for connecting BAIO® spigot ends, DCI, steel, PE and PVC pipes permits to establish valve junctions of up to 4 valves.

The vertical outlet serves the purpose of integrating hydrants or air valve sets in connection with a flanged socket (see figure/table). Alternatively, the double flanged taper (see figure/table) with female thread outlets at the vertical outlets can be used to connect service valves.

Gaskets:
DCI pipes: BLD® gasket (standard)
PE/PVC pipes: GKS gasket Ord.-No. 529-01 (please specify clock position for the factory installation of the GKS gasket)

Contacts
Wish List
Order Nr.

DN
Operating pressure max.
L

B
H
Description
For type of pipe
 Medium Weight Specification Basket
5380800010
 80 16 bar 340 mm 340 mm 152 mm Double tee cross DN 80/80 Cast Iron|PE|PVC 18,95 kg
5381000010
 100 16 bar 380 mm 380 mm 172 mm Double tee cross DN 100/100 Cast Iron|PE|PVC 22,60 kg
5381500010
 150 16 bar 450 mm 450 mm 216 mm Double tee cross DN 150/150 Cast Iron|PE|PVC 32,80 kg
5382000010
 200 16 bar 551 mm 551 mm 276 mm Double tee cross DN 200/200 Cast Iron|PE|PVC 53,50 kg
5382500010
 250 16 bar 650 mm 650 mm 344 mm Double tee cross DN 250/250 Cast Iron|PE|PVC 85,00 kg
5383000010
 300 16 bar 730 mm 730 mm 401 mm Double tee cross DN 300/300 Cast Iron|PE|PVC 115,00 kg
8551000806
 80   446 mm 446 mm 250 mm double flanged tapper ft 1 1/2" / flange DN 80 Cast Iron|PE|PVC 17,00 kg
8551000808
 80   446 mm 446 mm 250 mm double flanged tapper ft 1 1/4" / flange DN 81 Cast Iron|PE|PVC 17,00 kg
8558000800
 80   158 mm 158 mm 170 mm EU-fitting, BAIO-socket DN 80 Cast Iron|PE|PVC 6,30 kg
