529-01
GKS gasket (DCI to plastic) - BAIO® system

Water: to be used in the field of water for connecting of PE and PVC pipes in BAIO® sockets.

Gas: to be used in the field of gas for connecting of PVC pipes in BAIO® sockets.

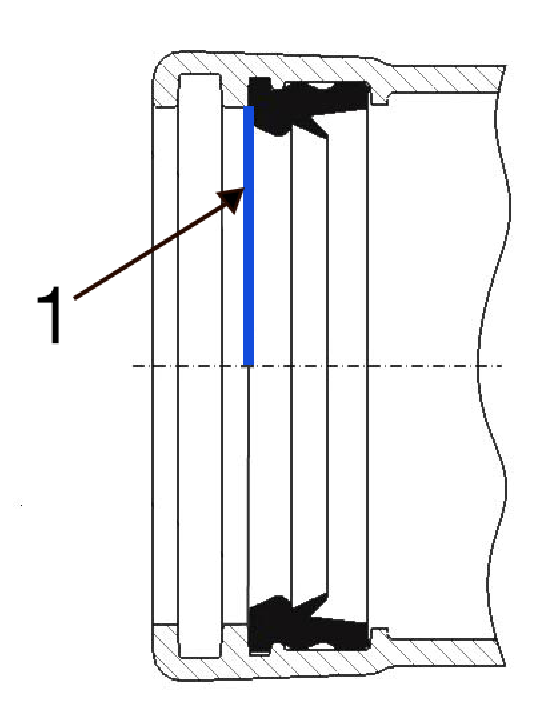

Picture:
1: blue marking for water
2: yellow marking for gas

read more reduce
Material: EPDM for potable water or NBR for gas
Max. operating Pressure: Sewage water: 16 bar
Potable water: 16 bar
Gas: 1 bar (only PVC)
Medium Water / Gas / Sewage

Water: to be used in the field of water for connecting of PE and PVC pipes in BAIO® sockets.

Gas: to be used in the field of gas for connecting of PVC pipes in BAIO® sockets.

Picture:
1: blue marking for water
2: yellow marking for gas

Contacts
Wish List
Order Nr.
*)
DN
B
d
D

Description
H
 Medium Weight Specification Basket
5290000900
   80 127 mm   90 mm GKS gasket for medium potable water 34,5 mm 0,19 kg
5290000901
   80 127 mm   90 mm GKS gasket for medium gas 34,5 mm 0,19 kg
5290001100
   100 147 mm   110 mm GKS gasket for medium potable water 34,5 mm 0,19 kg
5290001101
   100 147 mm   110 mm GKS gasket for medium gas 34,5 mm 0,19 kg
5290001125
 4) 100 150 mm   125 mm GKS gasket for medium potable water 38 mm 0,15 kg
5290001126
 4) 100 150 mm   125 mm GKS gasket for medium gas 38 mm 0,15 kg
5290001250
 1) 125 169 mm   125 mm GKS gasket for medium potable water 38 mm 0,31 kg
5290001252
 1) 125 169 mm   125 mm GKS gasket for medium gas 38 mm 0,31 kg
5290001400
   125 169 mm   140 mm GKS gasket for medium potable water 38 mm 0,24 kg
5290001401
   125 169 mm   140 mm GKS gasket for medium gas 38 mm 0,24 kg
5290001600
   150 198 mm   160 mm GKS gasket for medium potable water 34,5 mm 0,30 kg
5290001601
   150 198 mm   160 mm GKS gasket for medium gas 34,5 mm 0,30 kg
5290001800
 3) 150 205 mm   180 mm GKS gasket for medium potable water 39,5 mm 0,21 kg
5290001801
 3) 150 205 mm   180 mm GKS gasket for medium gas 39,5 mm 0,64 kg
5290002000
 1) 200 254 mm   200 mm GKS gasket for medium potable water 43 mm 0,64 kg
5290002002
 1) 200 254 mm   200 mm GKS gasket for medium gas 43 mm 0,64 kg
5290002250
   200 254 mm   225 mm GKS gasket for medium potable water 43 mm 0,30 kg
5290002251
   200 254 mm   225 mm GKS gasket for medium gas 43 mm 0,28 kg
5290002500
 2) 250 301 mm   250 mm GKS gasket for medium potable water 40,5 mm 0,96 kg
5290002502
 2) 250 301 mm   250 mm GKS gasket for medium gas 40,5 mm 0,96 kg
5290002800
   250 301 mm   280 mm GKS gasket for medium potable water 40 mm 0,30 kg
5290002801
   250 301 mm   280 mm GKS gasket for medium gas 40 mm 0,30 kg
5290003150
   300 357 mm   315 mm GKS gasket for medium potable water 47 mm 0,75 kg
5290003151
   300 357 mm   315 mm GKS gasket for medium gas 47 mm 0,77 kg
5296080000
   80   90 mm   surcharge   0,19 kg
5296081000
   80   90 mm   surcharge   0,19 kg
5296100000
   100   110 mm   surcharge   0,19 kg
5296101000
   100   110 mm   surcharge   0,19 kg
5296125000
   125   140 mm   surcharge   0,24 kg
5296125001
 5) 125   125 mm   surcharge   0,31 kg
5296126000
   125   140 mm   surcharge   0,24 kg
5296126100
 5) 125   125 mm   surcharge   0,31 kg
5296150000
   150   160 mm   surcharge   0,30 kg
5296151000
   150   160 mm   surcharge   0,30 kg
5296200000
   200   225 mm   surcharge   0,30 kg
5296200100
 5) 200   200 mm   surcharge   0,64 kg
5296201000
   200   225 mm   surcharge   0,30 kg
5296201100
 5) 200   200 mm   surcharge   0,96 kg
5296250000
   250   280 mm   surcharge   0,30 kg
5296250100
 5) 250   250 mm   surcharge   0,96 kg
5296251000
   250   280 mm   surcharge   0,30 kg
5296251100
 5) 250   250 mm   surcharge   0,96 kg
5296300000
   300   315 mm   surcharge   0,75 kg
5296301000
   300   315 mm   surcharge   0,77 kg
Wish List
1)
O-ring carrier downstream of gasket
2)
O-ring carriers upstream and downstream of gasket
3)
Only in combination with BAIO®-Muffen DN 150/d 180
4)
Only in combination with BAIO®-Muffen DN 100/d 125
5)
Incl. O-ring carrier

All BAIO® sockets are equipped with BAIO® lip gasket (BLD®) for water. Gas application on request.

When connecting PE pipes a support liner must be used.
