- 1)
- Delivered with enclosed support liner (POM).
- 2)
- Also available as packaging unit.
611-00

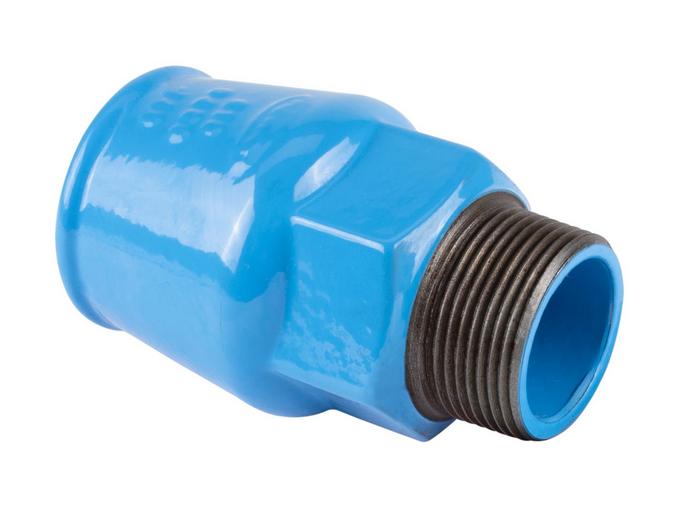

Push-fit fitting with male thread, reduced
| Material: | GJS-400, Hawle epoxy powder coated |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
Push-fit fitting, with one male thread, and with one push-fit socket for the restraint connection with PE pipes grades PE 80, PE 100 and PE-X (version for PVC pipes on request).
Very easy installation and dismantling.
Please note: if the fitting is used several times, the grip ring and the O-ring, if any, must be exchanged.
For underground pipeline construction and in distribution systems for both drinking water supply and wastewater disposal (no application in installation).
Cast fittings with internal or external threads should not be combined with components made of more precious materials (especially brass) in order to avoid contact corrosion.
|
Order Nr.
|
*) |
d |
male thread (AG) |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|
|
6110320400
|
1) | 32 mm | 1 1/4" | 0,57 kg | |||
|
6110320500
|
1) 2) | 32 mm | 1 1/2" | 0,60 kg | |||
|
6110320630
|
1) | 32 mm | 2" | 0,70 kg | |||
|
6110400320
|
1) | 40 mm | 1" | 0,77 kg | |||
|
6110400500
|
1) 2) | 40 mm | 1 1/2" | 0,82 kg | |||
|
6110400630
|
1) | 40 mm | 2" | 0,72 kg | |||
|
6110500320
|
1) | 50 mm | 1" | 1,12 kg | |||
|
6110500400
|
1) | 50 mm | 1 1/4" | 0,94 kg | |||
|
6110500630
|
1) | 50 mm | 2" | 1,25 kg | |||
|
6110630400
|
1) | 63 mm | 1 1/4" | 1,30 kg | |||
|
6110630500
|
1) | 63 mm | 1 1/2" | 1,45 kg | |||
|
6110750630
|
75 mm | 2" | 2,30 kg |
-
Product numbers for use with PVC pipes on request.
-
When connecting PE pipes a support liner must be used.
|
Operating instructions
|
|---|
| Operating and Maintenance Instructions - one-piece push-fit fittings |
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
|
Article Nr.
|
Product description |
|---|---|
| 590-00 | Support liner of stainless steel for PE pipes |
| 590-01 | Support liner of brass for PE pipes |
| 590-02 | Support liner of plastic for PE pipes |
| 598-00 | Chamfering tool "Concord" for PE pipes d 32 - 63 |
| 601-00 | Extractors |
