618-05

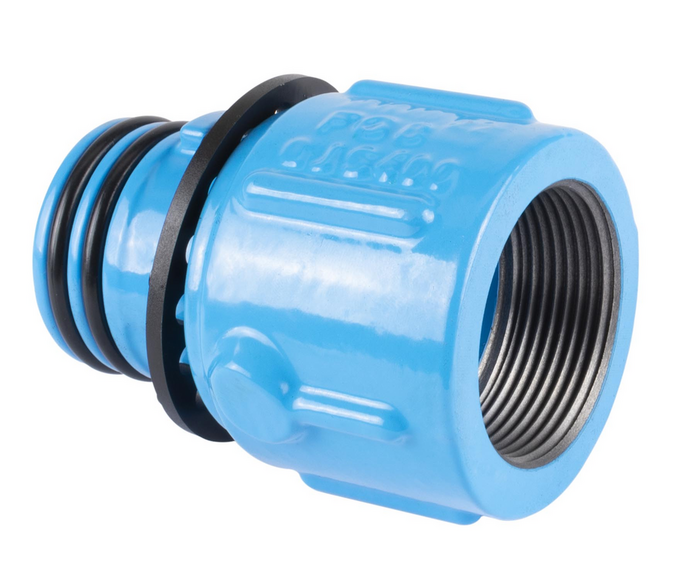

Transition piece with ZAK® tip end and internal thread
| Material: |
Steel, Hawle Epoxy Powder Coating Gasket: NBR |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
Transition from internal thread to ZAK® tip end. On the one hand with internal thread, on the other hand with ZAK® tip end for the form-fitting connection of fittings and fittings with ZAK® sleeves for the connection of test equipment.
|
Order Nr.
|
Operating pressure max. |
Female thread (IG) |
L |
B |
H |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
6189004640
|
Waste water: 16 bar|Potable water: 16 bar | 1 1/4" | 82 mm | 60 mm | 64 mm | ZAK 46 | 0,66 kg | |||
|
6189004650
|
Waste water: 16 bar|Potable water: 16 bar | 1 1/2" | 89,5 mm | 66 mm | 70 mm | ZAK 46 | 0,91 kg |
|
