637-00

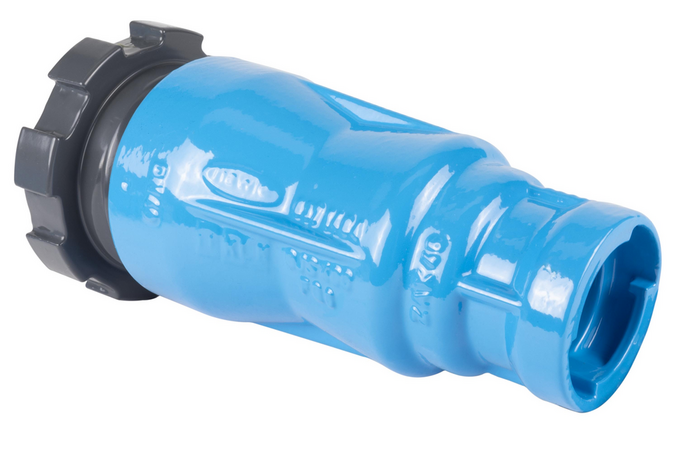

Transition fitting DCI pipe / ZAK® socket
| Material: | Body / screw ring: GJS-400, Hawle epoxy powder coated |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
Transition fitting from DCI pipes to the ZAK® system.
With one screw socket incl. SMU gasket ring, and with one ZAK® socket for the restraint connection with fittings, valves and pipe fittings with ZAK® spigot end.
In combination with ZAK® fittings (reduced) pipe transitions to PE or PVC pipes d 25 to d 63 can be established.
When the screw socket is used again, the grip ring and the O-ring, if any, must be replaced.
|
Order Nr.
|
DN |
Operating pressure max. |
L |
B |
D |
H |
CI pipe � |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6371460400
|
40 | 16 bar | 219 mm | 106 mm | 56 mm | 106 mm | 56 mm | ZAK 46 | 2,80 kg |
|
Further information
|
|---|
| General instruction for Fittings |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Transition fitting from DCI pipe / PE pipe |
|
Article Nr.
|
Product description |
|---|---|
| 616-00 | Push-fit fitting with ZAK® spigot end |
| 616-01 | Push-fit fitting with detachable taper ring and ZAK® spigot end |
| 616-02 | Rehabilitation fitting with detachable taper ring and ZAK® spigot end |
| 618-00 | ZAK® PE fusion end |
