We recommand to use a support liner.
647-05

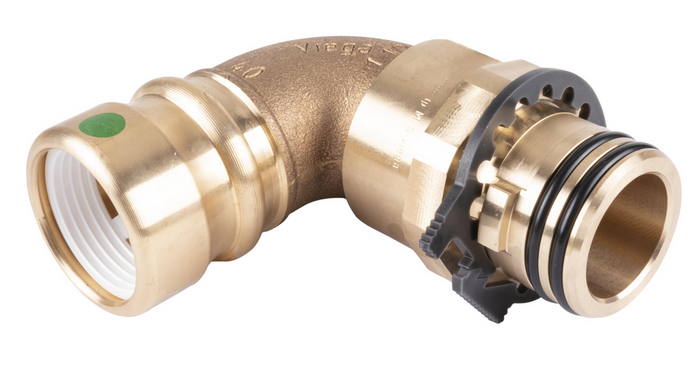

ZAK-Press-Fit®, elbow 90° with swivel-type outlet
| Material: | Red brass |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
The elbow ZAK-Press-Fit® 90° serves as transition fitting from the Viega Geopress system to the Hawle ZAK® system.
With one ZAK® spigot end for the restraint connection with ZAK®pipe drilling saddles, and with one Viega Geopress socket for the connection of PE pipes according to DIN 8074 and PE-X pipes according to DIn 16893.
The elbow is infinitely slewable by 360°.
When connecting PE pipes a support liner (model no. 590) is recommended.
For underground pipeline construction and distribution systems in drinking water supply. No application in the installation.
|
Order Nr.
|
Operating pressure max. |
L |
B |
D |
H |
Type of pipe |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
6474320460
|
16 bar | 112 mm | 60 mm | 32 mm | 134 mm | PE|PE-X | ZAK 46 | 1,05 kg | |||
|
6474400460
|
16 bar | 124 mm | 60 mm | 40 mm | 134 mm | PE|PE-X | ZAK 46 | 1,18 kg | |||
|
6474500460
|
16 bar | 132 mm | 60 mm | 50 mm | 141 mm | PE|PE-X | ZAK 46 | 1,35 kg | |||
|
6474630460
|
16 bar | 148 mm | 60 mm | 63 mm | 153 mm | PE|PE-X | ZAK 46 | 1,68 kg |
|
Further information
|
|---|
| General instruction for Fittings |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - ZAK-Press-FIT® |
|
Article Nr.
|
Product description |
|---|---|
| 590-01 | Support liner of brass for PE pipes |
| 590-02 | Support liner of plastic for PE pipes |
