- 1)
-
special pipe cover depth for milling cutter (RD) :
9600711000 = RD 0,85 m - 1,20 m
9601015000 = RD 1,05 m - 1,60 m
9601117000 = RD 1,15 m - 1,80 m
9601318000 = RD 1,30 m - 2,00 m
9601525000 = RD 1,55 m - 2,60 m - 2)
-
special pipe cover depth for valve saddle:
For DN 150 pipe, the pipe cover is reduced by 30 mm
For DN 200 pipe, the pipe cover is reduced by 50 mm
For DN 250 pipe, the pipe cover is reduced by 80 mm
For DN 300 pipe, the pipe cover is reduced by 100 mm
For DN 350 pipe, the pipe cover is reduced by 130 mm
For DN 400 pipe, the pipe cover is reduced by 150 mm
For DN 500 pipe, the pipe cover is reduced by 200 mm
960-00

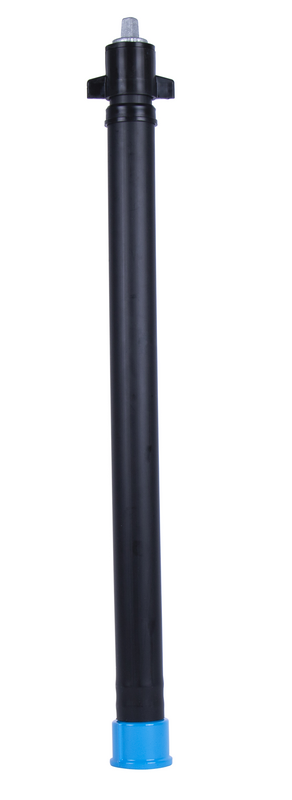

Telescopic extension spindle (type S) for service valve and valve saddle
| Material: |
Round threaded cover: GJL-250, Hawle epoxy powder coated Spindle head and coupling socket: GJS-400, galvanized Hollow top spindle and spindle shaft: steel, galvanized Inner and outer protecting tube: PE-HD |
|---|---|
| Medium | Water / Gas / Sewage |
Hawle extension spindles (type S) serve to operate Hawle service valves in the field of underground pipeline construction. Telescopic extension spindles permit the continuous adaptation to the existing pipe cover depth.
Via the round threaded cover the extension spindle is screwed clockwise onto the round thread (round thread adaptor) of the shut-off valve.
This has the advantage that the torque is transferred from the coupling socket to the spindle square, making the additional pinning of the coupling socket of the extension spindle and the spindle of the shut-off valve unnecessary.
Especially in case of cohesive soils care shall be taken that the valve and the extension spindle are properly back-filled with sand to ensure frost resistance.
For operation, operating keys are suitable. Extensions and similar are not permitted.
For "rigid" extension spindles see model no. 910-00.
|
Order Nr.
|
*) |
Pipe cover depth |
Square of spindle |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|
|
9600711000
|
1) 2) | 0,70 - 1,10 | 12,3 mm | 2,50 kg | |||
|
9601015000
|
1) 2) | 1,00 - 1,50 | 12,3 mm | 3,50 kg | |||
|
9601117000
|
1) 2) | 1,10 - 1,70 | 12,3 mm | 3,70 kg | |||
|
9601318000
|
1) 2) | 1,30 - 2,00 | 12,3 mm | 4,50 kg | |||
|
9601525000
|
1) 2) | 1,50 - 2,50 | 12,3 mm | 5,20 kg |
-
Special lengths for other pipe cover depth ranges on request!
|
