- 1)
- Baulänge abweichend von DIN EN 558-1
400-00G

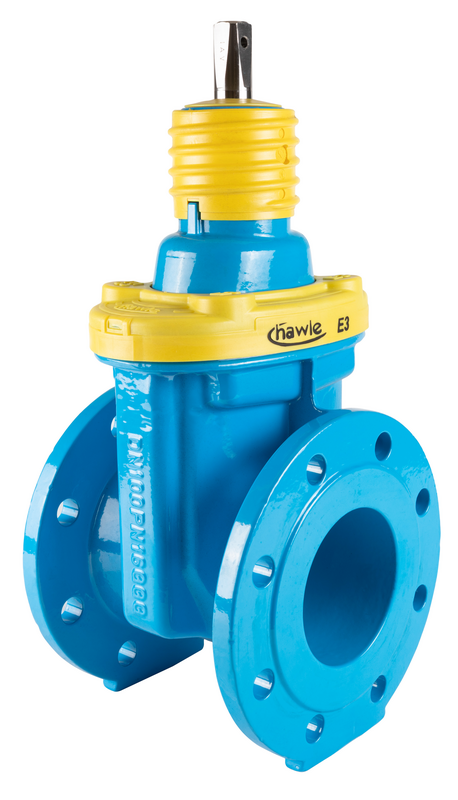

Keil-Flach-Schieber "E2" und "E3", Baulänge Grundreihe 14 nach DIN EN 558-1
Material: |
Gehäuse: GJS-400, Hawle-Epoxy-Pulverbeschichtung Spindel: nichtrostender Stahl Keilmutter: Messing Keil: GJS-400, innen und aussen NBR für Gas Dichtungen: NBR für Gas |
---|---|
Max. Betriebsdruck: | Siehe Tabelle |
Medium | Gas |
Keil-Flach-Schieber mit beidseitigem Flansch nach EN 1092-2.
Die Betätigung kann über Handrad, Einbaugarnitur oder motorisierte Drehantriebe (ab DN 50, auf Anfrage) erfolgen.
Baulänge:
Grundreihe 14 nach DIN EN 558-1
Gaseinsatz: Prüfung nach DIN 3230-5 PG-1 oder PG-3; inkl. Abnahmeprüfzeugnis 3.1 nach EN 10204 für die nach DIN 3230-5 durchgeführte Dichtheits- und Festigkeitsprüfung.
Best.-Nr.
|
*) |
DN |
max. Betriebsdruck |
PN |
Ausführung/ Abgang |
L |
H |
Bezeichnung |
Medium | Gewicht | A-Text | Merkliste |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000250100
|
1) | 25 | Gas: 5 bar | 10/16 | Typ E2 | 130 mm | 165 mm | PG 1 | 4,50 kg | |||
4000320100
|
1) | 32 | Gas: 5 bar | 10|16 | Typ E2 | 140 mm | 200 mm | PG 1 | 7,00 kg | |||
4000400100
|
40 | Gas: 5 bar | 10|16 | Typ E2 | 140 mm | 200 mm | PG 1 | 7,00 kg | ||||
4000500101
|
50 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10|16 | Typ E2 | 150 mm | 260 mm | PG 1 | 9,00 kg | ||||
4000500301
|
50 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10|16 | Typ E2 | 150 mm | 260 mm | PG 3 | 9,00 kg | ||||
4000650101
|
65 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10|16 | Typ E2 | 170 mm | 328 mm | PG 1 | 17,10 kg | ||||
4000650301
|
65 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10|16 | Typ E2 | 170 mm | 328 mm | PG 3 | 17,10 kg | ||||
4000800103
|
80 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10/16 | Typ E3 | 180 mm | 315 mm | PG 1 | 19,20 kg | ||||
4000800303
|
80 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10/16 | Typ E3 | 180 mm | 315 mm | PG 3 | 19,20 kg | ||||
4001000101
|
100 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10|16 | Typ E2 | 190 mm | 375 mm | PG 1 | 25,10 kg | ||||
4001250103
|
125 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10/16 | Typ E3 | 200 mm | 420 mm | PG 1 | 37,00 kg | ||||
4001250303
|
125 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10/16 | Typ E3 | 200 mm | 420 mm | PG 3 | 37,00 kg | ||||
4001500103
|
150 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10/16 | Typ E3 | 210 mm | 460 mm | PG 1 | 40,00 kg | ||||
4001500303
|
150 | Gas: 16 bar|Wasserstoff (H2): 16 bar | 10/16 | Typ E3 | 210 mm | 435 mm | PG 3 | 40,00 kg | ||||
4002000101
|
200 | Gas: 10 bar | 10 | Typ E2 | 230 mm | 565 mm | PG 1 | 63,00 kg | ||||
4002000161
|
200 | Gas: 16 bar | 16 | Typ E2 | 230 mm | 565 mm | PG 1 | 63,00 kg | ||||
4002000301
|
200 | Gas: 10 bar | 10 | Typ E2 | 230 mm | 565 mm | PG 3 | 63,00 kg | ||||
4002000361
|
200 | Gas: 16 bar | 16 | Typ E2 | 230 mm | 565 mm | PG 3 | 63,00 kg | ||||
4002500101
|
250 | Gas: 10 bar | 10 | Typ E2 | 250 mm | 670 mm | PG 1 | 99,50 kg | ||||
4002500161
|
250 | Gas: 16 bar | 16 | Typ E2 | 250 mm | 670 mm | PG 1 | 99,50 kg | ||||
4002500301
|
250 | Gas: 10 bar | 10 | Typ E2 | 250 mm | 670 mm | PG 3 | 99,50 kg | ||||
4002500361
|
250 | Gas: 16 bar | 16 | Typ E2 | 250 mm | 670 mm | PG 3 | 99,50 kg | ||||
4003000101
|
300 | Gas: 10 bar|Wasserstoff (H2): 10 bar | 10 | Typ E2 | 270 mm | 755 mm | PG 1 | 148,00 kg | ||||
4003000161
|
300 | Gas: 16 bar | 16 | Typ E2 | 270 mm | 755 mm | PG 1 | 148,00 kg | ||||
4003000361
|
300 | Gas: 16 bar | 16 | Typ E2 | 270 mm | 755 mm | PG 3 | 144,00 kg | ||||
4003500101
|
350 | Gas: 10 bar | 10 | Typ E2 | 290 mm | 838 mm | PG 1 | 205,00 kg | ||||
4004000101
|
400 | Gas: 10 bar | 10 | Typ E2 | 310 mm | 975 mm | PG 1 | 261,00 kg | ||||
4004000161
|
400 | Gas: 16 bar | 16 | Typ E2 | 310 mm | 975 mm | PG 1 | 261,00 kg | ||||
4004000301
|
400 | Gas: 10 bar | 10 | Typ E2 | 310 mm | 975 mm | PG 3 | 261,00 kg | ||||
4004000361
|
400 | Gas: 16 bar | 16 | Typ E2 | 310 mm | 975 mm | PG 3 | 261,00 kg |
-
Weitere Artikelnummern und Preise für Gas auf Anfrage.
