400-00G

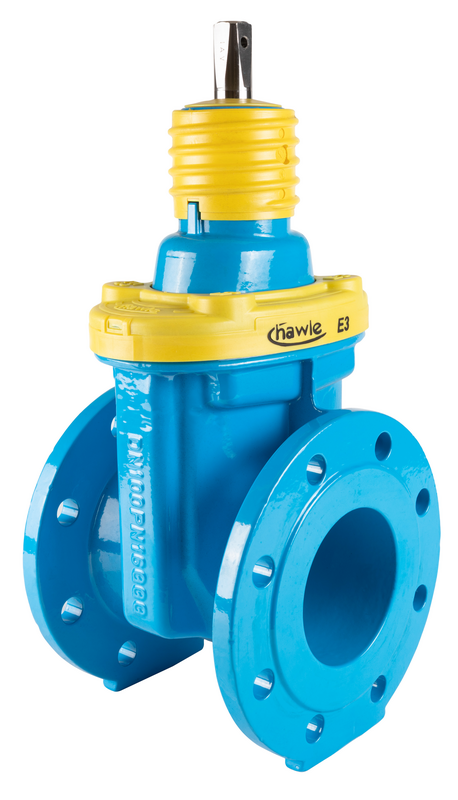

Flanged gate valve "E2" and "E3", short

Gate valve with short body with two flanged ends acc. to EN 1092-2.

The valve can be operated via handwheel, extension spindle, or electric actuators(on request).

Face-to-face dimension:
Group 14 acc. to DIN EN 558-1

Flange dimensions: acc. to EN 1092-2

Use for gas: tested PG-1 or PG-3; incl. acceptance certificate 3.1 acc. to EN 10204 for tightness and strength test performed.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated

Spindle: stainless steel
Wedge nut: brass
Wedge: GJS-400, EPDM inside and outside NBR for gas
Gaskets: NBR for gas
Max. operating Pressure: See table
Medium Gas

Gate valve with short body with two flanged ends acc. to EN 1092-2.

The valve can be operated via handwheel, extension spindle, or electric actuators(on request).

Face-to-face dimension:
Group 14 acc. to DIN EN 558-1

Flange dimensions: acc. to EN 1092-2

Use for gas: tested PG-1 or PG-3; incl. acceptance certificate 3.1 acc. to EN 10204 for tightness and strength test performed.

Contacts
Wish List
Order Nr.
*)
DN
Operating pressure max.
PN
Type / Outlet
L

H
Description
 Medium Weight Specification Basket
4000250100
 1) 25 Gas: 5 bar 10/16 Typ E2 130 mm 165 mm PG 1 4,50 kg
4000320100
 1) 32 Gas: 5 bar 10|16 Typ E2 140 mm 200 mm PG 1 7,00 kg
4000400100
   40 Gas: 5 bar 10|16 Typ E2 140 mm 200 mm PG 1 7,00 kg
4000500101
   50 Gas: 16 bar|Hydrogen (H2): 16 bar 10|16 Typ E2 150 mm 260 mm PG 1 9,00 kg
4000500301
   50 Gas: 16 bar|Hydrogen (H2): 16 bar 10|16 Typ E2 150 mm 260 mm PG 3 9,00 kg
4000650101
   65 Gas: 16 bar|Hydrogen (H2): 16 bar 10|16 Typ E2 170 mm 328 mm PG 1 17,10 kg
4000650301
   65 Gas: 16 bar|Hydrogen (H2): 16 bar 10|16 Typ E2 170 mm 328 mm PG 3 17,10 kg
4000800103
   80 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 180 mm 315 mm PG 1 19,20 kg
4000800303
   80 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 180 mm 315 mm PG 3 19,20 kg
4001000101
   100 Gas: 16 bar|Hydrogen (H2): 16 bar 10|16 Typ E2 190 mm 375 mm PG 1 25,10 kg
4001250103
   125 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 200 mm 420 mm PG 1 37,00 kg
4001250303
   125 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 200 mm 420 mm PG 3 37,00 kg
4001500103
   150 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 210 mm 460 mm PG 1 40,00 kg
4001500303
   150 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 210 mm 435 mm PG 3 40,00 kg
4002000101
   200 Gas: 10 bar 10 Typ E2 230 mm 565 mm PG 1 63,00 kg
4002000161
   200 Gas: 16 bar 16 Typ E2 230 mm 565 mm PG 1 63,00 kg
4002000301
   200 Gas: 10 bar 10 Typ E2 230 mm 565 mm PG 3 63,00 kg
4002000361
   200 Gas: 16 bar 16 Typ E2 230 mm 565 mm PG 3 63,00 kg
4002500101
   250 Gas: 10 bar 10 Typ E2 250 mm 670 mm PG 1 99,50 kg
4002500161
   250 Gas: 16 bar 16 Typ E2 250 mm 670 mm PG 1 99,50 kg
4002500301
   250 Gas: 10 bar 10 Typ E2 250 mm 670 mm PG 3 99,50 kg
4002500361
   250 Gas: 16 bar 16 Typ E2 250 mm 670 mm PG 3 99,50 kg
4003000101
   300 Gas: 10 bar|Hydrogen (H2): 10 bar 10 Typ E2 270 mm 755 mm PG 1 148,00 kg
4003000161
   300 Gas: 16 bar 16 Typ E2 270 mm 755 mm PG 1 148,00 kg
4003000361
   300 Gas: 16 bar 16 Typ E2 270 mm 755 mm PG 3 144,00 kg
4003500101
   350 Gas: 10 bar 10 Typ E2 290 mm 838 mm PG 1 205,00 kg
4004000101
   400 Gas: 10 bar 10 Typ E2 310 mm 975 mm PG 1 261,00 kg
4004000161
   400 Gas: 16 bar 16 Typ E2 310 mm 975 mm PG 1 261,00 kg
4004000301
   400 Gas: 10 bar 10 Typ E2 310 mm 975 mm PG 3 261,00 kg
4004000361
   400 Gas: 16 bar 16 Typ E2 310 mm 975 mm PG 3 261,00 kg
Wish List
1)
face-to-face dimension differs from DIN EN 558-1

More product numbers for gas on request.
