227-00

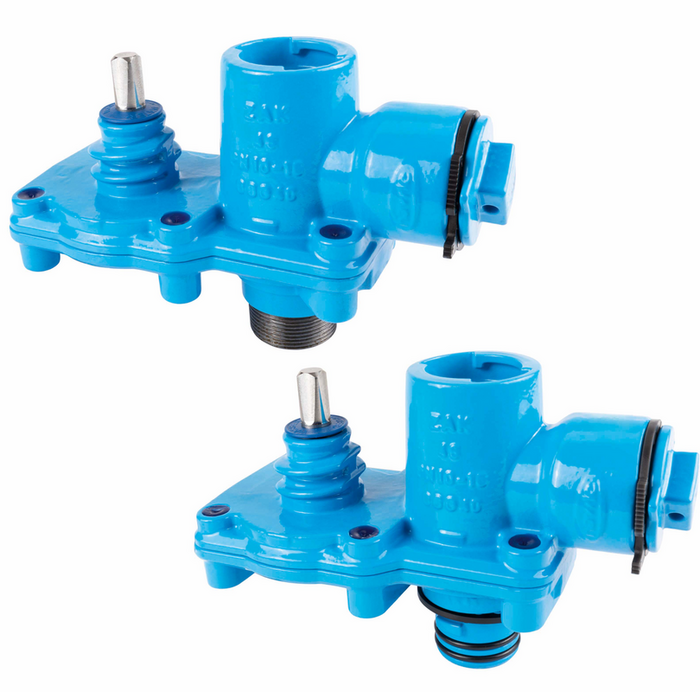

Hawlinger with upper horizontal ZAK® socket in pipe direction and lower tapered male thread or lower ZAK® spigot end for installation on pipe saddle
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Gaskets: EPDM acc. to KTW-BWGl for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Lower connection with ZAK® spigot end:
Hawlinger with lower ZAK® spigot end for the restraint connection in pipe drilling saddles with ZAK® socket (e.g. HAKU pipe drilling saddle, model no. 525-01 or universal pipe drilling saddle, model no. 352-00)
Lower connection with male thread:
Hawlinger with lower tapered male thread for installation in pipe drilling saddles with cylindrical female thread (e.g. HAKU pipe drilling saddle, model no. 525-01 or universal pipe drilling saddle, model no. 352-01)
In combination with ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.
|
Order Nr.
|
Lower outlet |
Description |
Upper outlet |
L |
B |
H |
Borehole max. |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2270320400
|
male thread 1 1/4" conical | ZAK 34 | 172 mm | 103 mm | 152 mm | 24 mm | 3,90 kg | ||||
|
2270320500
|
male thread 1 1/2" conical | ZAK 34 | 172 mm | 103 mm | 152 mm | 24 mm | 4,00 kg | ||||
|
2270500460
|
ZAK 46 | ZAK 46 | 230 mm | 123 mm | 160 mm | 28 mm | 5,95 kg | ||||
|
2270500500
|
male thread 1 1/2" conical | ZAK 46 | 230 mm | 123 mm | 155 mm | 28 mm | 5,50 kg | ||||
|
2270500505
|
male thread 1 1/2" conical | ZAK 46 | 230 mm | 123 mm | 155 mm | 28 mm | 5,80 kg | ||||
|
2270500630
|
male thread 2" conical | ZAK 46 | 230 mm | 123 mm | 155 mm | 36 mm | 5,60 kg | ||||
|
2270500635
|
male thread 2" conical | ZAK 46 | 230 mm | 123 mm | 155 mm | 36 mm | 5,60 kg | ||||
|
2400000009
|
drainage fuction on request | 0,00 kg | |||||||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
