228-00

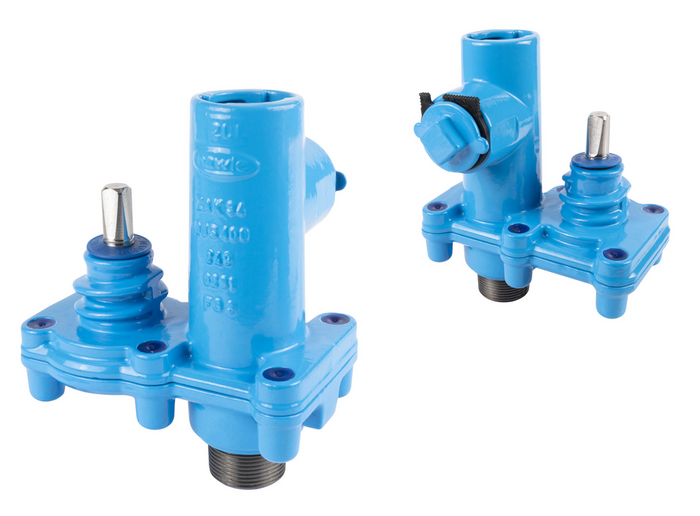

Hawlinger with horizontal ZAK® socket 90° to pipe direction and with lower tapered male thread for installation on pipe saddle

The Hawlinger with lower, tapered male thread outlet is to be used for installation in pipe drilling saddles with cylindrical female thread (e.g. HAKU pipe saddle, model no. 525-01, or universal pipe saddle, model no. 352-01).

In combination with ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: EPDM for potable water or NBR for gas
Max. operating Pressure: Gas: 5 bar
Potable water: 16 bar
Medium Water / Gas

The Hawlinger with lower, tapered male thread outlet is to be used for installation in pipe drilling saddles with cylindrical female thread (e.g. HAKU pipe saddle, model no. 525-01, or universal pipe saddle, model no. 352-01).

In combination with ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

Contacts
Wish List
Order Nr.

Lower outlet
Description
Upper outlet
L

B
H
Borehole max.
 Medium Weight Specification Basket
2280320400
 male thread 1 1/4" conical   ZAK 34 165 mm 109 mm 198 mm 24 mm 4,40 kg
2280320500
 male thread 1 1/2" conical   ZAK 34 165 mm 109 mm 198 mm 24 mm 4,60 kg
2280500630
 male thread 2" conical   ZAK 46 195 mm 125 mm 198 mm 36 mm 6,00 kg
2400000009
   drainage fuction on request           0,00 kg
8700000000
   Surcharge for spindle bore           0,00 kg
Wish List

Product numbers for gas on request.

Version with lower ZAK® spigot end on request.
