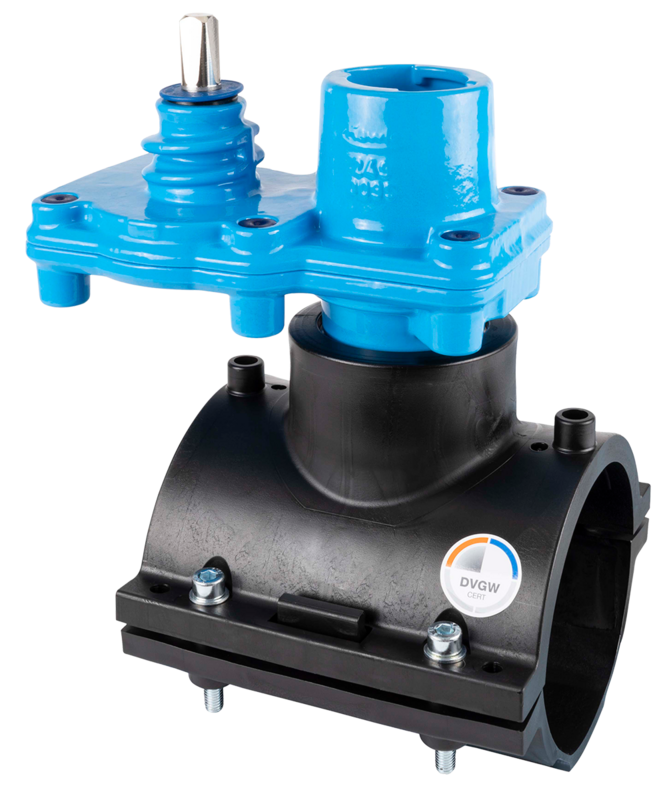

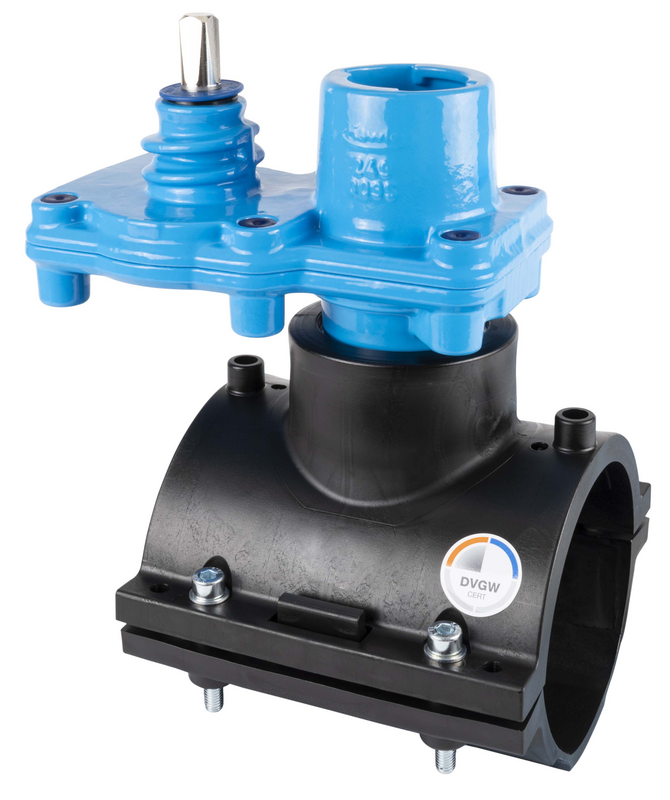

Hawlinger with upper vertical ZAK® socket and lower electrofusion saddle

Hawlingers with HA-WELD® electrofusion saddle are to be used for welding onto PE pipes.

In combination with the ZAK® spigot end fittings, the vertical ZAK® socket outlet is used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy and under pressure drilling of the main line.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device, shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for potable water
Electrofusion saddle HA-WELD: PE 100
Max. operating Pressure: Potable water: 16 bar
Medium Water

Hawlingers with HA-WELD® electrofusion saddle are to be used for welding onto PE pipes.

In combination with the ZAK® spigot end fittings, the vertical ZAK® socket outlet is used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy and under pressure drilling of the main line.

Contacts
Wish List
Order Nr.
*)
L

Description
B
D

H
Borehole max.
Outlet O
 Medium Weight Specification Basket
2390633200
   186 mm   120 mm 63 mm 247 mm 24 mm ZAK 34 3,70 kg
2390903200
   200 mm   145 mm 90 mm 277 mm 24 mm ZAK 34 5,10 kg
2390905000
   229 mm   145 mm 90 mm 273 mm 36 mm ZAK 46 7,30 kg
2390905005
   229 mm   145 mm 90 mm 273 mm 36 mm ZAK 46 7,30 kg
2391103200
   201 mm   180 mm 110 mm 300 mm 24 mm ZAK 34 4,70 kg
2391105000
   230 mm   180 mm 110 mm 293 mm 36 mm ZAK 46 5,90 kg
2391105005
   230 mm   180 mm 110 mm 293 mm 36 mm ZAK 46 5,90 kg
2391253200
   201 mm   180 mm 125 mm 310 mm 24 mm ZAK 34 5,20 kg
2391255000
   230 mm   180 mm 125 mm 307 mm 36 mm ZAK 46 7,60 kg
2391255005
   230 mm   180 mm 125 mm 307 mm 36 mm ZAK 46 7,60 kg
2391603200
   201 mm   220 mm 160 mm 346 mm 24 mm ZAK 34 5,40 kg
2391605000
   229 mm   220 mm 160 mm 341 mm 36 mm ZAK 46 7,90 kg
2391605005
   229 mm   220 mm 160 mm 341 mm 36 mm ZAK 46 7,90 kg
2391803200
   201 mm   245 mm 180 mm 366 mm 24 mm ZAK 34 5,00 kg
2391805000
   230 mm   245 mm 180 mm 360 mm 36 mm ZAK 46 8,10 kg
2391805005
 1) 230 mm   245 mm 180 mm 360 mm 36 mm ZAK 46 8,10 kg
2392003200
 1) 214 mm   271 mm 200 mm 411 mm 24 mm ZAK 34 5,30 kg
2392005000
 1) 243 mm   271 mm 200 mm 358 mm 36 mm ZAK 46 8,30 kg
2392253200
   201 mm   295 mm 225 mm 411 mm 24 mm ZAK 34 5,80 kg
2392255000
   230 mm   295 mm 225 mm 408 mm 36 mm ZAK 46 8,40 kg
2392255005
   230 mm   295 mm 225 mm 408 mm 36 mm ZAK 46 8,40 kg
2400000009
     drainage fuction on request           0,00 kg
8700000000
     Surcharge for spindle bore           0,00 kg
Wish List
1)
With FRIALEN® fusion saddle
