239-01

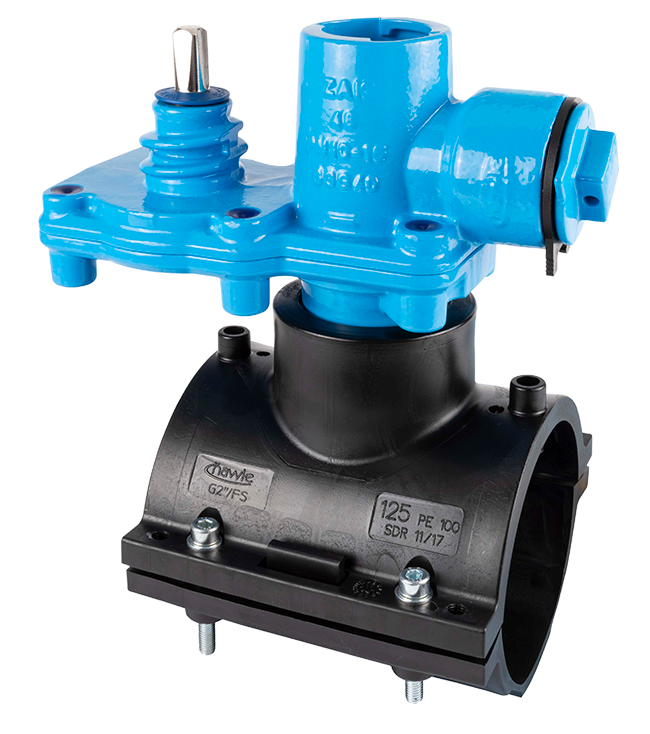

Hawlinger with upper horizontal ZAK® socket in pipe direction and with lower electrofusion saddle

Hawlingers with HA-WELD electrofusion saddle are to be used for welding onto PE pipes acc. to DIN EN 12201 / DIN 8074-2 PE 80/100.

In combination with ZAK® spigot end fittings, the ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required.

In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

Square of spindle: 12,3 mm

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device, shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for potable water
Electrofusion saddle HA-WELD: PE 100
Max. operating Pressure: Potable water: 16 bar
Medium Water

Hawlingers with HA-WELD electrofusion saddle are to be used for welding onto PE pipes acc. to DIN EN 12201 / DIN 8074-2 PE 80/100.

In combination with ZAK® spigot end fittings, the ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required.

In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

Square of spindle: 12,3 mm

Contacts
Wish List
Order Nr.

Operating pressure max.
Description
L

B
D
H
Square of spindle
Borehole max.
For type of pipe
Outlet O
 Medium Weight Specification Basket
2390633210
 16 bar   186 mm 120 mm 63 mm 240 mm 12,3 mm 24 mm PE|PVC ZAK 34 4,30 kg
2390903210
 16 bar   200 mm 145 mm 90 mm 270 mm 12,3 mm 24 mm PE|PVC ZAK 34 5,10 kg
2390905010
 16 bar   232 mm 145 mm 90 mm 273 mm 12,3 mm 36 mm PE|PVC ZAK 46 6,40 kg
2391103210
 16 bar   202 mm 180 mm 110 mm 289 mm 12,3 mm 24 mm PE|PVC ZAK 34 5,20 kg
2391105010
 16 bar   230 mm 180 mm 110 mm 292 mm 12,3 mm 36 mm PE|PVC ZAK 46 6,60 kg
2391253210
 16 bar   202 mm 180 mm 125 mm 304 mm 12,3 mm 24 mm PE|PVC ZAK 34 5,40 kg
2391255010
 16 bar   229 mm 180 mm 125 mm 307 mm 12,3 mm 36 mm PE|PVC ZAK 46 6,80 kg
2391603210
 16 bar   202 mm 220 mm 160 mm 339 mm 12,3 mm 24 mm PE|PVC ZAK 34 5,70 kg
2391605010
 16 bar   229 mm 220 mm 160 mm 342 mm 12,3 mm 36 mm PE|PVC ZAK 46 6,90 kg
2391803210
 16 bar   201 mm 245 mm 180 mm 359 mm 12,3 mm 24 mm PE|PVC ZAK 34 5,70 kg
2391805010
 16 bar   230 mm 245 mm 180 mm 362 mm 12,3 mm 36 mm PE|PVC ZAK 46 6,90 kg
2392253210
 16 bar   201 mm 295 mm 225 mm 405 mm 12,3 mm 24 mm PE|PVC ZAK 34 5,50 kg
2392255010
 16 bar   230 mm 295 mm 225 mm 408 mm 12,3 mm 36 mm PE|PVC ZAK 46 8,10 kg
2400000009
   drainage fuction on request                 0,00 kg
8700000000
   Surcharge for spindle bore                 0,00 kg
