250-00

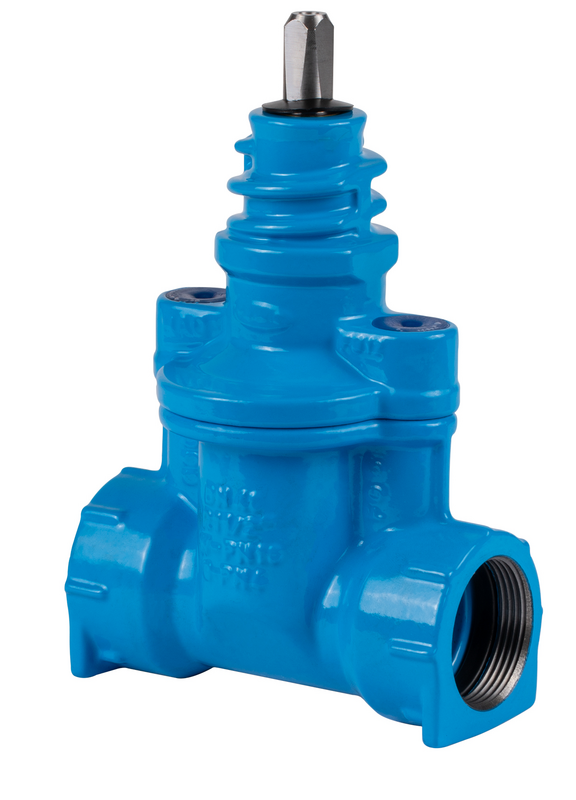

Service valve with female threads
| Material: |
Body and bonnet: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge: brass, cured-on EPDM acc. to KTW-BWGL for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Service valve with two female threaded outlets.
Spindle square: 12.3 mm
|
Order Nr.
|
Operating pressure max. |
Description |
L |
H |
Square of spindle |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
2500250000
|
Potable water: 16 bar | 120 mm | 156 mm | 12,3 mm | IG 3/4" | 2,95 kg | ||||
|
2500320000
|
Potable water: 16 bar | 120 mm | 156 mm | 12,3 mm | female thread 1" | 2,63 kg | ||||
|
2500400000
|
Potable water: 16 bar | 140 mm | 185 mm | 12,3 mm | female thread 1 1/4" | 3,60 kg | ||||
|
2500500000
|
Potable water: 16 bar | 140 mm | 185 mm | 12,3 mm | female thread 1 1/2" | 3,60 kg | ||||
|
2500630000
|
Potable water: 16 bar | 150 mm | 208 mm | 12,3 mm | female thread 2" | 4,50 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
Further information
|
|---|
| General instruction for Service valves |
|
Technical Documents
|
|---|
| declaration-of-conformity-other-fittings_3 |
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
