250-02

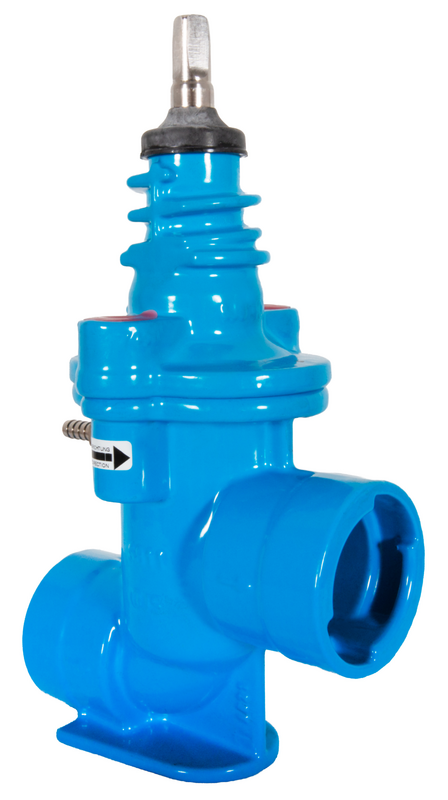

House connection drain valve with ZAK® sleeve
| Material: |
Body and top: GJS-400, Hawle epoxy powder coating Spindle: stainless steel Cone: Brass, vulcanized with EPDM according to KTW-BWGL for water |
|---|---|
| Medium | Water |
House connection gate valve with ZAK® socket on both sides for the form-fitting connection of fittings and fittings with ZAK® tip end.
Suitable for emptying pipes at risk of frost, such as irrigation systems. It has a reliable sealing system with integrated pressurized water protection, which allows automatic emptying only when the valve is fully closed.
The operation can be done via handwheel or installation set.
Spindle square: 12.3 mm
|
Order Nr.
|
Operating pressure max. |
Description |
L |
H |
Square of spindle |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
2501004600
|
Potable water: 16 bar | 165 mm | 68 mm | 12,3 mm | ZAK 46 | 4,15 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
Further information
|
|---|
| General instruction for Service valves |
