252-00

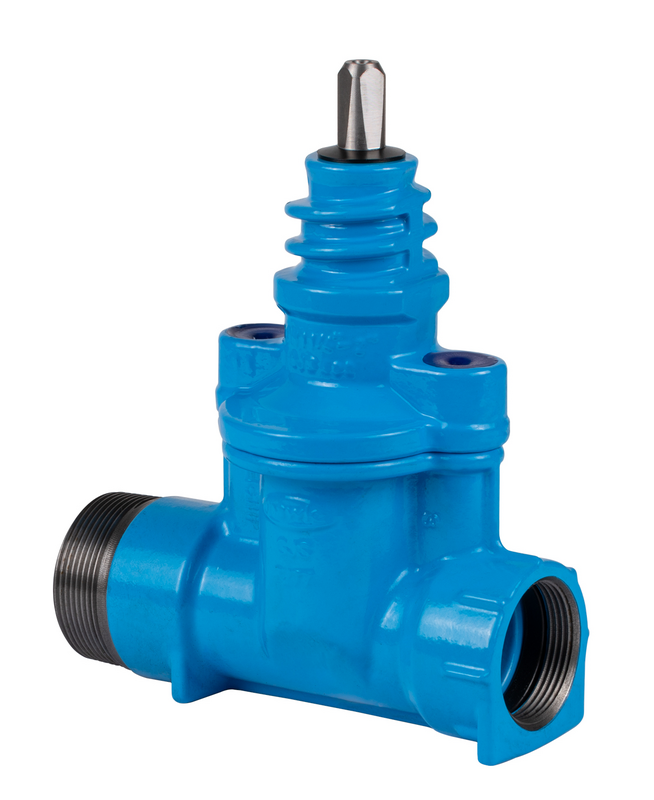

Service valve with female and male thread
| Material: |
Body and bonnet: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge: brass, cured-on EPDM acc. to KTW-BWGL for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Service valve, with one female thread, and with one male thread.
Spindle square: 12.3 mm
|
Order Nr.
|
Operating pressure max. |
Description |
Female thread (IG) |
male thread (AG) |
L |
H |
Square of spindle |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2520320000
|
16 bar | 1" | 1 1/4" | 155 mm | 156 mm | 12,3 mm | 2,90 kg | ||||
|
2520400000
|
16 bar | 1 1/4" | 2" | 175 mm | 185 mm | 12,3 mm | 4,60 kg | ||||
|
2520500000
|
16 bar | 1 1/2" | 2" | 175 mm | 185 mm | 12,3 mm | 4,60 kg | ||||
|
2520510000
|
16 bar | 1 1/2" | 1 1/2" | 175 mm | 185 mm | 12,3 mm | 4,80 kg | ||||
|
2520630000
|
16 bar | 2" | 2" | 180 mm | 208 mm | 12,3 mm | 6,00 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
Further information
|
|---|
| General instruction for Service valves |
|
Technical Documents
|
|---|
| declaration-of-conformity-other-fittings_3 |
