255-00G

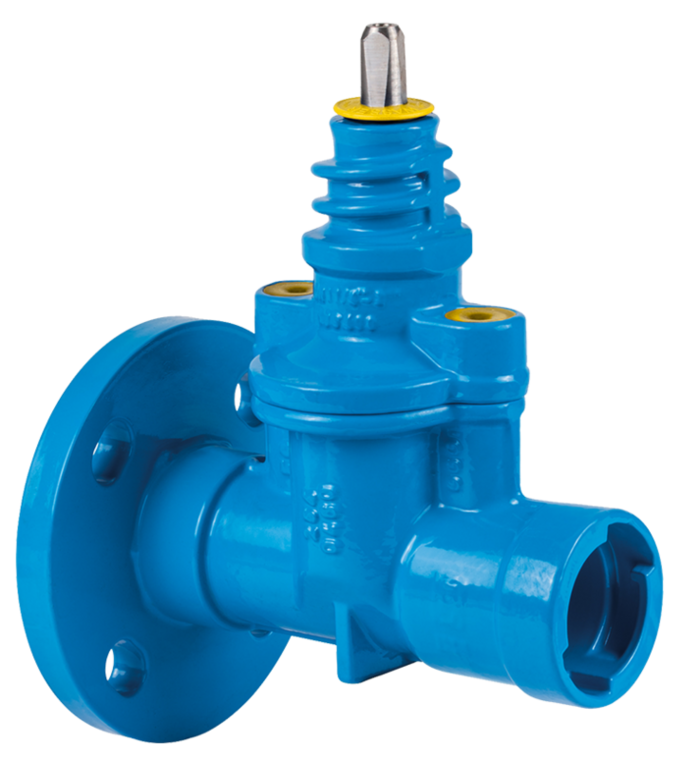

Service valve with ZAK® socket and flange

Service valve for the transition from flanges to the ZAK® system.
With one ZAK® socket for the form-locked connection of valves and fittings with ZAK® spigot end, and with one flange and bent elongated holes permitting alignment at the opposing flange of up to 6°.
Spindle square: 12.3 mm
Flange mating dimensions acc. to EN 1092-2.

read more reduce
Material: Body and bonnet: GJS-400, Hawle epoxy powder coated
Spindle: stainless steel
Shut-off plug: brass, NBR for gas
Flange: steel, Hawle epoxy powder coated
Max. operating Pressure: Gas: 5 bar
Medium Gas

Service valve for the transition from flanges to the ZAK® system.
With one ZAK® socket for the form-locked connection of valves and fittings with ZAK® spigot end, and with one flange and bent elongated holes permitting alignment at the opposing flange of up to 6°.
Spindle square: 12.3 mm
Flange mating dimensions acc. to EN 1092-2.

Contacts
Wish List
Order Nr.

Flange DN
L

B
H
Outlet O
 Medium Weight Specification Basket
2550460405
 40 197 mm 150 mm 263 mm ZAK 46 5,61 kg
2550460505
 50 197 mm 165 mm 270 mm ZAK 46 6,10 kg
