267-00

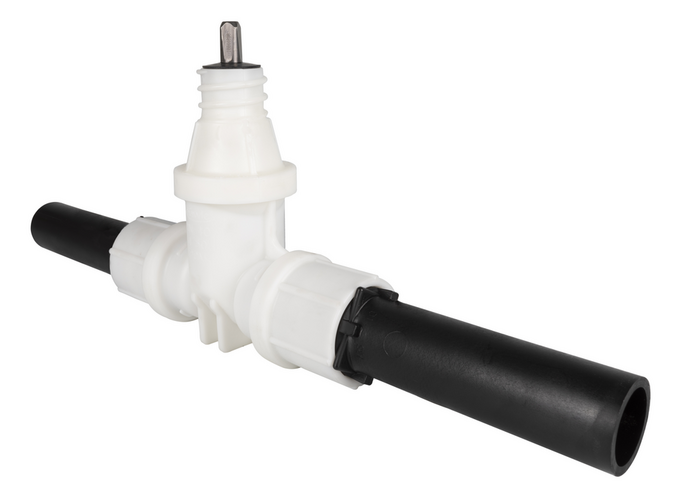

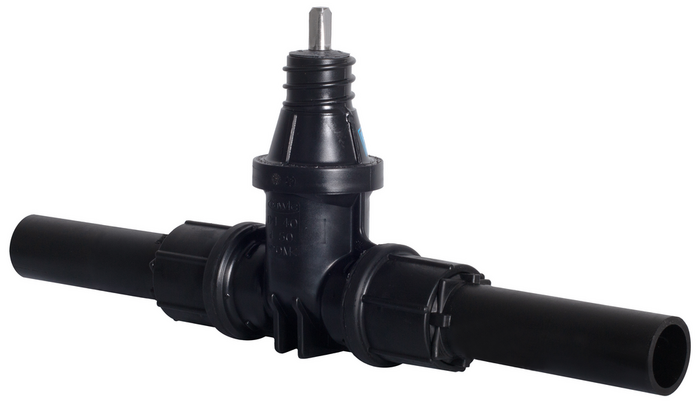

Service valve of POM with PE fusion ends

Service valve of POM with two PE fusion ends pipe wall thickness SDR 11. Welding the valve into the PE line can be effected via butt welding technology or via electrofusion socket.

Spindle square: 12.3 mm

Maximum operating torque: 80 Nm

read more reduce
Material: Body and bonnet: POM
Spindle: stainless steel
Wedge: brass, with cured-on EPDM acc. to KTW-BWGL for potable water
Max. operating Pressure: Potable water: 16 bar
Medium Water

Service valve of POM with two PE fusion ends pipe wall thickness SDR 11. Welding the valve into the PE line can be effected via butt welding technology or via electrofusion socket.

Spindle square: 12.3 mm

Maximum operating torque: 80 Nm

Contacts
Wish List

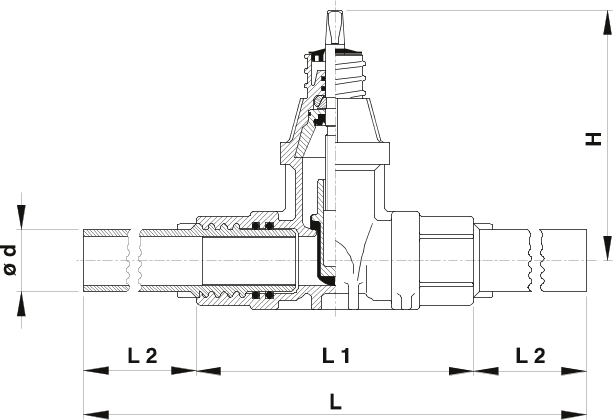

Order Nr.

Operating pressure max.
Description
d
L

L1
L2
H
Square of spindle
 Medium Weight Specification Basket
2670320000
 Potable water: 16 bar   32 mm 502 mm 180 mm 161 mm 177 mm 12,3 mm 1,25 kg
2670400000
 Potable water: 16 bar   40 mm 544 mm 218 mm 163 mm 205 mm 12,3 mm 1,85 kg
2670500000
 Potable water: 16 bar   50 mm 587 mm 251 mm 168 mm 205 mm 12,3 mm 2,20 kg
2670630000
 Potable water: 16 bar   63 mm 639 mm 271 mm 184 mm 221 mm 12,3 mm 3,10 kg
8700000000
   Surcharge for spindle bore             0,00 kg
