410-00
Gate valve "E2" Sytem Victaulic®

Gate Valve with grooved connection acc. to DIN 2460 for mechanical joining, e.g. Sytem Victaulic®.
The operation can be performed either by handwheel or extension spindle or electr. actuator ( on request ).

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle: stainless steel
Wedge nut: brass
Wedge: GJS-400, EPDM inside and outside for potable water
Gasket: EPDM for potable water
Max. operating Pressure: 16 bar
Medium Water

Gate Valve with grooved connection acc. to DIN 2460 for mechanical joining, e.g. Sytem Victaulic®.
The operation can be performed either by handwheel or extension spindle or electr. actuator ( on request ).

Contacts
Wish List
Order Nr.

DN
PN
Type / Outlet
L

L1
L2
H
h1
h2
 Medium Weight Specification Basket
4108050001
 50 16 Typ E2 208 mm 15,5 mm 9,4 mm 260 mm 56,5 mm 60 mm 10,00 kg
4108080003
 80 16 Typ E3 220 mm 15,5 mm 9,4 mm 315 mm 84,3 mm 89 mm 17,50 kg
4108100001
 100 16 Typ E2 248 mm 15,5 mm 9,4 mm 375 mm 109,4 mm 114 mm 23,00 kg
4108150001
 150 16 Typ E2 290 mm 15,5 mm 9,4 mm 460 mm 163,3 mm 168,3 mm 34,50 kg
4108200003
 200 16 Typ E3 346 mm 18,4 mm 12,5 mm 540 mm 213,8 mm 219 mm 66,00 kg
Wish List

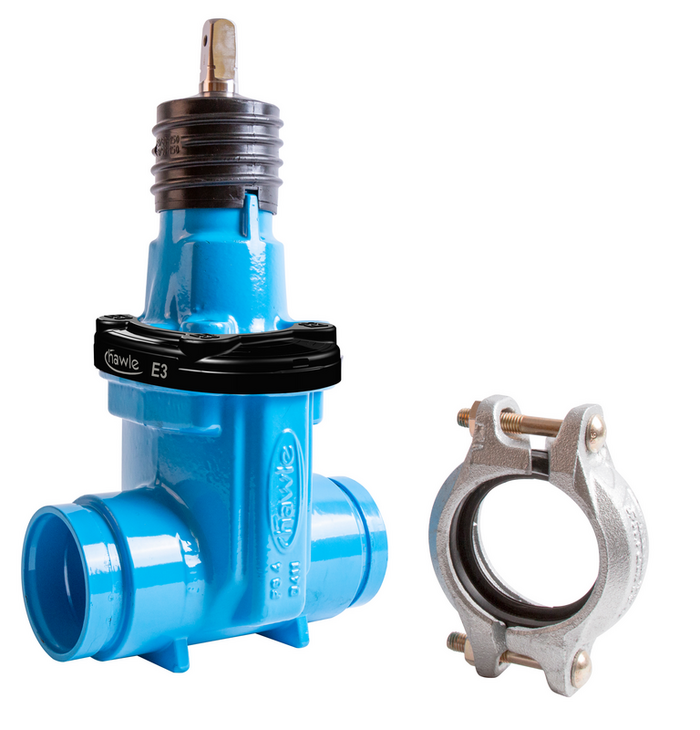

The coupling depicted in the figure is not included in the scope of supply.
