432-00

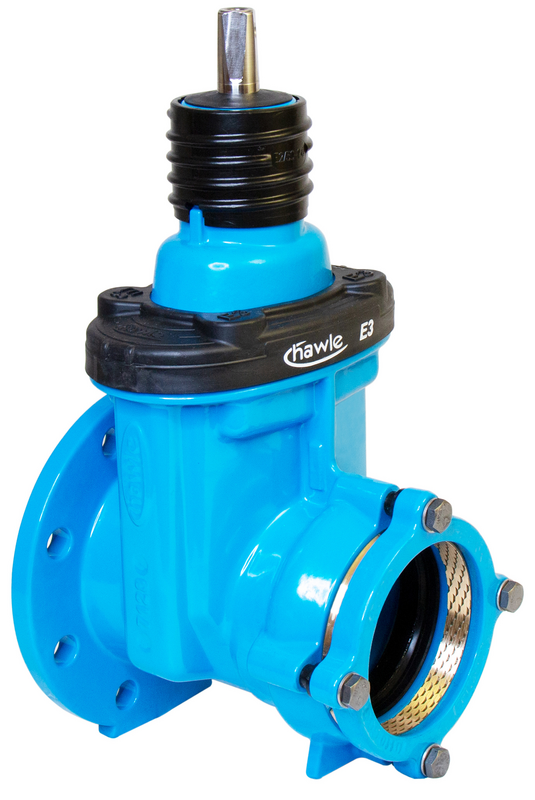

Gate valve "E3" with flange/socket end - System 2000

Gate valve, with one flange, and with one push-fit socket for the restraint connection with PE pipes grades PE 80, PE 100 and PVC pipes.

The pipe is sealed via lip gasket. Due to the contour of the lip gasket the pipe end can be pushed into the sealing chamber without great effort. The restraint joint acts independently of the pipe gasket and is ensured by tightening the lock ring.

When connecting PE pipes a support liner (model no. 590) must be used.

Flange dimensions: acc. to EN 1092-2

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle: stainless steel
Wedge nut: brass
Wedge: GJS-400, EPDM inside and outside acc. to KTW-BWGL for water
Gaskets: EPDM acc. to KTW-BWGL for water
Grip ring: brass for DN 50 - 250, red brass for DN 300 and higher
E3-edge protection: PE
Max. operating Pressure: See table
Medium Water

Gate valve, with one flange, and with one push-fit socket for the restraint connection with PE pipes grades PE 80, PE 100 and PVC pipes.

The pipe is sealed via lip gasket. Due to the contour of the lip gasket the pipe end can be pushed into the sealing chamber without great effort. The restraint joint acts independently of the pipe gasket and is ensured by tightening the lock ring.

When connecting PE pipes a support liner (model no. 590) must be used.

Flange dimensions: acc. to EN 1092-2

Contacts
Wish List
Order Nr.

DN
Operating pressure max.
PN
d
L

L1
H
Square of spindle
For type of pipe
Type of pipe
 Medium Weight Specification Basket
4320500633
 50 Potable water: 16 bar 10/16 63 mm 188 mm 83 mm 235 mm 14,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 10,10 kg
4320650753
 65 Potable water: 16 bar 10/16 75 mm 205 mm 85 mm 305 mm 17,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 15,50 kg
4320800903
 80 Potable water: 16 bar 10/16 90 mm 211 mm 88 mm 315 mm 17,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 16,80 kg
4321001103
 100 Potable water: 16 bar 10/16   221 mm 88 mm 345 mm 19,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 21,50 kg
4321001253
 100 Potable water: 16 bar 10/16 125 mm 225 mm 88 mm 345 mm 19,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 21,80 kg
4321251403
 125 Potable water: 16 bar 10/16 140 mm 239 mm 96 mm 420 mm 19,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 32,00 kg
4321501603
 150 Potable water: 16 bar 10/16 160 mm 263 mm 108 mm 435 mm 19,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 38,00 kg
4321501803
 150 Potable water: 16 bar 10/16   276 mm 118 mm 435 mm 19,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 43,00 kg
4322002003
 200 Potable water: 10 bar 10 200 mm 298 mm 128 mm 540 mm 24,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 65,00 kg
4322002253
 200 Potable water: 10 bar 10 225 mm 298 mm 130 mm 540 mm 24,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 66,00 kg
4322502503
 250 Potable water: 10 bar 10 250 mm 325 mm 147 mm 650 mm 27,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 101,50 kg
4322502504
 250 Potable water: 16 bar 16 250 mm 325 mm 147 mm 650 mm 27,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 101,50 kg
4322502803
 250 Potable water: 10 bar 10 280 mm 335 mm 150 mm 650 mm 27,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 105,00 kg
4322502804
 250 Potable water: 16 bar 16 280 mm 335 mm 150 mm 650 mm 27,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 0,00 kg
4323003153
 300 Potable water: 10 bar 10 315 mm 371 mm 176 mm 735 mm 27,3 mm PVC|PE 80|PE 100 PVC|PE 80|PE 100 157,60 kg
Wish List

For thin-walled PE pipes (up to 3 mm wall thickness) as well as for low-pressure pipelines, the use of a support liner is mandatory.
