229-04

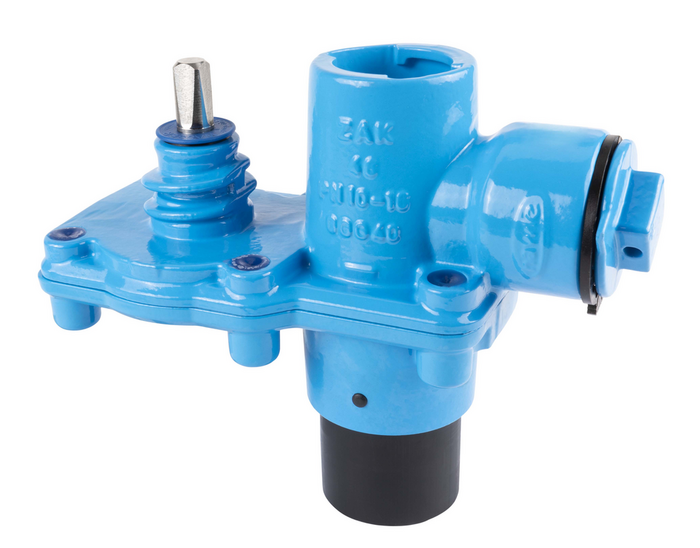

Hawlinger with upper horizontal ZAK® socket in pipe direction and with lower PE fusion end
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Fusion end: PE Gaskets: EPDM acc. to KTW-BWGL for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Hawlingers with lower PE-X fusion end are to be used for welding into electrofusion saddles +GF+ type ELGEF® Plus.
In combination with ZAK® spigot end fittings, the ZAK® socket outlets are used to connect service lines.
All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.
To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.
|
Order Nr.
|
Operating pressure max. |
Description |
L |
B |
D |
H |
Square of spindle |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2294320630
|
16 bar | 172 mm | 102 mm | 63 mm | 190 mm | 12,3 mm | 24 mm | ZAK 34 | 3,90 kg | ||||
|
2294500630
|
16 bar | 230 mm | 125 mm | 63 mm | 195 mm | 12,3 mm | 36 mm | ZAK 46 | 6,10 kg | ||||
|
2400000009
|
drainage fuction on request | 0,00 kg | |||||||||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
Further information
|
|---|
| General instruction for Pipe drilling saddle |
