Version with outlet in pipe direction on request.
-
Other connecting (ZAK, thread) on request
313-05

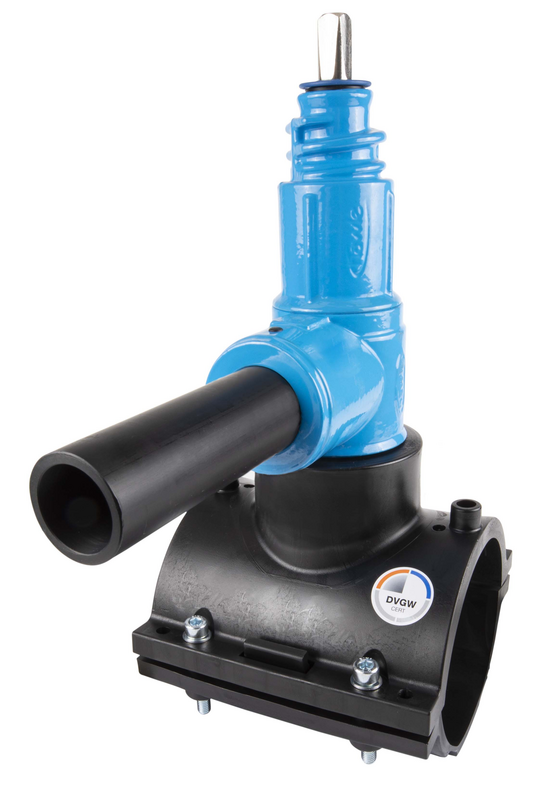

Service valve with milling device and electrofusion saddle with horizontal PE fusion end
| Material: |
Milling saddle: red brass, Hawle epoxy powder coated Electrofusion saddle (HA-WELD®): PE 100 Milling cutter: brass Outlet: PE 100, SDR 11 |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Hawle milling saddles are provided with integrated drilling tool and operational shut-off device. Therefore it is possible to drill pipes of PE and PVC also with the pipe being in service.
To ensure proper drilling, the drilling tool is fed in at high speed until it almost touches the material. The drilling process proper is performed at low feed rate. Shut-off during operation is effected via a profile gasket plunging into a cylindrical gasket surface.
Milling saddles with HA-WELD® electrofusion saddles are to be used for welding onto PE pipes.
The horizontal PE fusion end (90° to pipe direction) can be used for installation of a push-fit fitting or for welding into PE pipelines via resistance welding or butt-welding.
Application range:
PE, SDR 11: d 90 - d 225
PE, SDR 17: d 90 - d 225
Drilling diameter: 25 mm
|
Order Nr.
|
L |
Description |
H |
Outlet O |
D |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|
|
3135090040
|
262 mm | 254 mm | 40 mm | 90 mm | 5,20 kg | ||||
|
3135110040
|
262 mm | 254 mm | 40 mm | 110 mm | 5,30 kg | ||||
|
3135125040
|
262 mm | 255 mm | 40 mm | 125 mm | 5,50 kg | ||||
|
3135160040
|
262 mm | 254 mm | 40 mm | 160 mm | 5,80 kg | ||||
|
3135180040
|
262 mm | 255 mm | 40 mm | 180 mm | 5,90 kg | ||||
|
3135225040
|
262 mm | 255 mm | 40 mm | 225 mm | 6,40 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
