- 1)
- Delivered with enclosed support liner (POM).
651-03

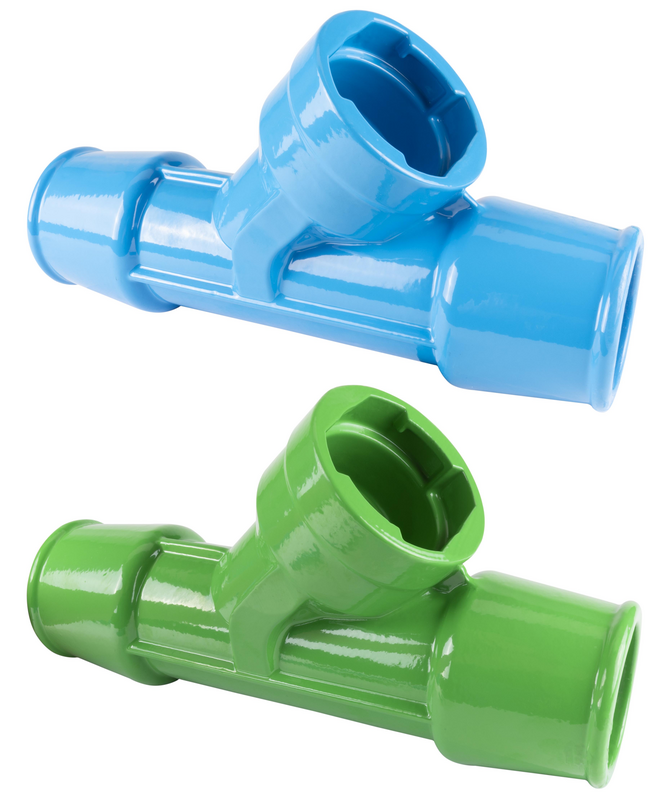

Connector with ZAK® outlet (ZAK 69), 45°
| Material: |
Body: GJS-400, Hawle epoxy powder coated Interlocked grip ring: POM O-ring: EPDM |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
Connector, with push-fit socket in the opening area for the longitudinally force-locked connection of PE pipes acc. to DIN 8074 and PE-X pipes acc. to DIN 16893 (version for PVC pipes on request) as well as ZAK69 socket (45°) for the form-locked integration of valves and fittings with ZAK69 spigot end.
Very easy installation and dismantling.
Please note: When the fitting is used again, the grip ring and the O-ring, if any, shall also be replaced.
For underground pipeline construction and in distribution systems for both drinking water supply and wastewater disposal (no application in installation).
|
Order Nr.
|
*) |
Colour |
L |
B |
D |
H |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
6517006369
|
1) | blue | 315 mm | 175 mm | 63 mm | 175 mm | ZAK 69 | 4,13 kg | |||
|
6517006371
|
1) | green | 315 mm | 175 mm | 63 mm | 175 mm | ZAK 69 | 4,13 kg |
-
Article numbers and prices for use with PVC pipes on request.
-
When PE pipes are connected a support liner shall be used.
|
Article Nr.
|
Product description |
|---|---|
| 590-01 | Support liner of brass for PE pipes |
| 590-02 | Support liner of plastic for PE pipes |
| 598-00 | Chamfering tool "Concord" for PE pipes d 32 - 63 |
| 601-00 | Extractors |
