239-02

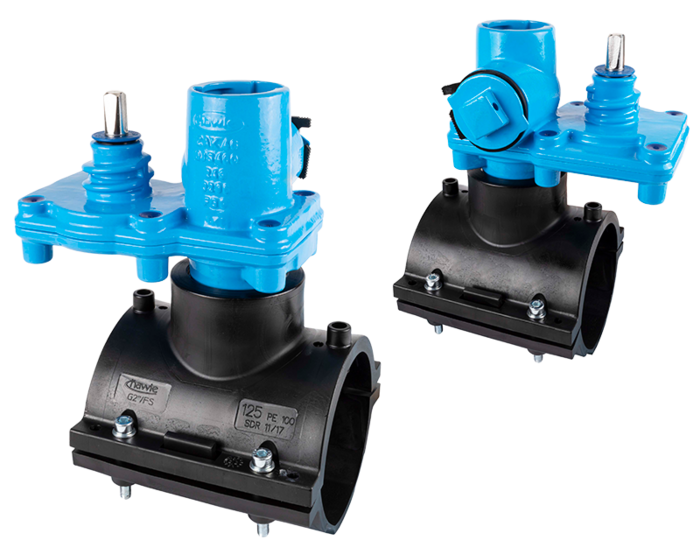

Hawlinger with upper horizontal ZAK® socket 90° to pipe direction and lower electrofusion saddle

Hawlingers with HA-WELD® electrofusion saddles are to be used for welding onto PE pipes.

In combination with ZAK® spigot end fittings, the ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device, shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for potable water
Electrofusion saddle HA-WELD: PE 100
Max. operating Pressure: Potable water: 16 bar
Medium Water

Hawlingers with HA-WELD® electrofusion saddles are to be used for welding onto PE pipes.

In combination with ZAK® spigot end fittings, the ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required. In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.

Contacts
Wish List
Order Nr.
*)
L

Description
B
D

H
Borehole max.
Outlet O
 Medium Weight Specification Basket
2390633220
   186 mm   120 mm 63 mm 246 mm 24 mm ZAK 34 4,30 kg
2390903220
   200 mm   145 mm 90 mm 276 mm 24 mm ZAK 34 5,05 kg
2390905020
   229 mm   145 mm 90 mm 273 mm 36 mm ZAK 46 6,90 kg
2391103220
   202 mm   180 mm 110 mm 299 mm 24 mm ZAK 34 5,20 kg
2391105020
   230 mm   180 mm 110 mm 295 mm 36 mm ZAK 46 7,10 kg
2391253220
   202 mm   180 mm 125 mm 310 mm 24 mm ZAK 34 5,30 kg
2391255020
   230 mm   180 mm 125 mm 306 mm 36 mm ZAK 46 7,20 kg
2391603220
   202 mm   220 mm 160 mm 345 mm 24 mm ZAK 34 5,50 kg
2391605020
   230 mm   220 mm 160 mm 341 mm 36 mm ZAK 46 8,10 kg
2391803220
   201 mm   245 mm 180 mm 365 mm 24 mm ZAK 34 5,60 kg
2391805020
   230 mm   245 mm 180 mm 361 mm 36 mm ZAK 46 8,30 kg
2392003220
 1) 214 mm   271 mm 200 mm 378 mm 24 mm ZAK 34 6,00 kg
2392005020
 1) 243 mm   271 mm 200 mm 377 mm 36 mm ZAK 46 8,70 kg
2392253220
   202 mm   295 mm 225 mm 411 mm 24 mm ZAK 34 6,30 kg
2392255020
   230 mm   295 mm 225 mm 408 mm 36 mm ZAK 46 9,00 kg
2400000009
     drainage fuction on request           0,00 kg
8700000000
     Surcharge for spindle bore           0,00 kg
Wish List
1)
With FRIALEN® fusion saddle
