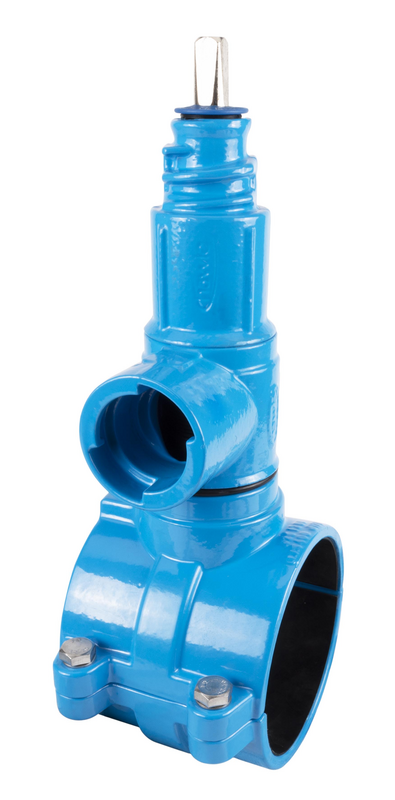

HAKU milling valve with horizontal ZAK® socket
| Material: |
Milling valve: red brass, Hawle epoxy powder coated HAKU pipe valve: GJS-400, Hawle epoxy powder coated Milling cutter: brass |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Hawle milling valves are provided with integrated drilling tool and operational shut-off device. Therefore it is possible to drill pipes of PE and PVC also with the pipe being in service.
To ensure proper drilling, the drilling tool is fed in at high speed until it almost touches the material. The drilling process proper is performed at low feed rate. Shut-off during operation is effected via a profile gasket plunging into a cylindrical gasket surface.
HAKU milling valves are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the valve halves an inadmissible deformation of the pipe is prevented by metal stops.
In combination with the ZAK® spigot end fittings, the vertical ZAK® socket outlet (90° to pipe direction) is used to connect service lines.
Application range:
PE, SDR 11: d 63 - d 225
PE, SDR 17: d 63 - d 315
PVC: d 63 - d 280 (PN 10)
PVC: d 63 - d 160 (PN 16)
Drilling diameter: 35 mm
|
Order Nr.
|
L |
Description |
B1 |
D |
H |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
3133063046
|
100 mm | 137 mm | 63 mm | 307 mm | ZAK 46 | 5,30 kg | ||||
|
3133075046
|
110 mm | 137 mm | 75 mm | 326 mm | ZAK 46 | 6,70 kg | ||||
|
3133090046
|
120 mm | 151 mm | 90 mm | 343 mm | ZAK 46 | 6,70 kg | ||||
|
3133110046
|
120 mm | 171 mm | 110 mm | 364 mm | ZAK 46 | 7,10 kg | ||||
|
3133125046
|
120 mm | 190 mm | 125 mm | 377 mm | ZAK 46 | 7,50 kg | ||||
|
3133140046
|
120 mm | 205 mm | 140 mm | 393 mm | ZAK 46 | 8,20 kg | ||||
|
3133160046
|
120 mm | 230 mm | 160 mm | 413 mm | ZAK 46 | 8,70 kg | ||||
|
3133180046
|
120 mm | 248 mm | 180 mm | 444 mm | ZAK 46 | 11,30 kg | ||||
|
3133225046
|
120 mm | 301 mm | 225 mm | 481 mm | ZAK 46 | 13,00 kg | ||||
|
3133250046
|
180 mm | 347 mm | 250 mm | 500 mm | ZAK 46 | 15,50 kg | ||||
|
3133280046
|
180 mm | 377 mm | 280 mm | 532 mm | ZAK 46 | 16,20 kg | ||||
|
3133315046
|
180 mm | 408 mm | 315 mm | 578 mm | ZAK 46 | 18,60 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
