Version with outlet in pipe direction on request.
-
Other nominal widths on request.
313-01

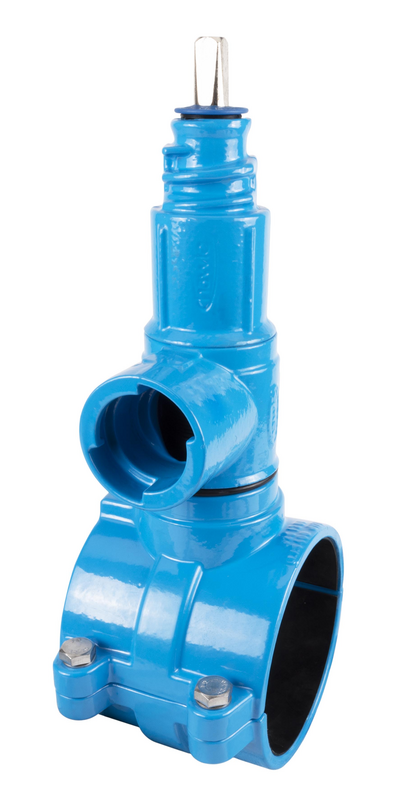

HAKU milling saddle for PE pipes with horizontal ZAK® outlet
| Material: |
Milling saddle: red brass, Hawle epoxy powder coated HAKU pipe saddle: GJS-400, Hawle epoxy powder coated Punch: brass |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Hawle milling saddles for PE pipes are provided with integrated drilling tool and an operational shut-off facility. This permits the in-service drilling of PE pipelines.
To ensure proper drilling, the drilling tool is fed in at high speed until it almost touches the material. The drilling process proper is performed at low feed rate. Shut-off during operation is effected via a profile gasket immersed into a cylindrical sealing surface.
HAKU milling saddles are to be used for installation on PE pipes acc. to DIN 8074. The two saddle halves are exactly calibrated to the respective outside diameter, When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.
In combination with the ZAK®spigot end fittings, the horizontal ZAK® socket outlet (90° to pipe direction) is used to connect service lines.
Range of application:
PE, SDR 11: d 63 - d 225
PE, SDR 17: d 63 - d 315
Drilling diameter: 25 mm
|
Order Nr.
|
L |
Description |
B1 |
D |
H |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
3136063046
|
100 mm | 125 mm | 63 mm | 307 mm | ZAK 46 | 5,30 kg | ||||
|
3136090046
|
120 mm | 151 mm | 90 mm | 343 mm | ZAK 46 | 6,70 kg | ||||
|
3136110046
|
120 mm | 171 mm | 110 mm | 364 mm | ZAK 46 | 7,10 kg | ||||
|
3136125046
|
120 mm | 190 mm | 125 mm | 377 mm | ZAK 46 | 7,50 kg | ||||
|
3136140046
|
120 mm | 205 mm | 140 mm | 393 mm | ZAK 46 | 8,20 kg | ||||
|
3136160046
|
120 mm | 230 mm | 160 mm | 413 mm | ZAK 46 | 8,70 kg | ||||
|
3136180046
|
120 mm | 248 mm | 180 mm | 444 mm | ZAK 46 | 11,30 kg | ||||
|
3136225046
|
120 mm | 301 mm | 225 mm | 481 mm | ZAK 46 | 13,00 kg | ||||
|
3136250046
|
120 mm | 301 mm | 250 mm | 481 mm | ZAK 46 | 15,50 kg | ||||
|
3136280046
|
180 mm | 377 mm | 280 mm | 532 mm | ZAK 46 | 16,20 kg | ||||
|
3136315046
|
180 mm | 408 mm | 315 mm | 578 mm | ZAK 46 | 18,60 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
