- 1)
- Special advantage in case of 4-hole flanges (old standard): flange can be rotated.
411-00

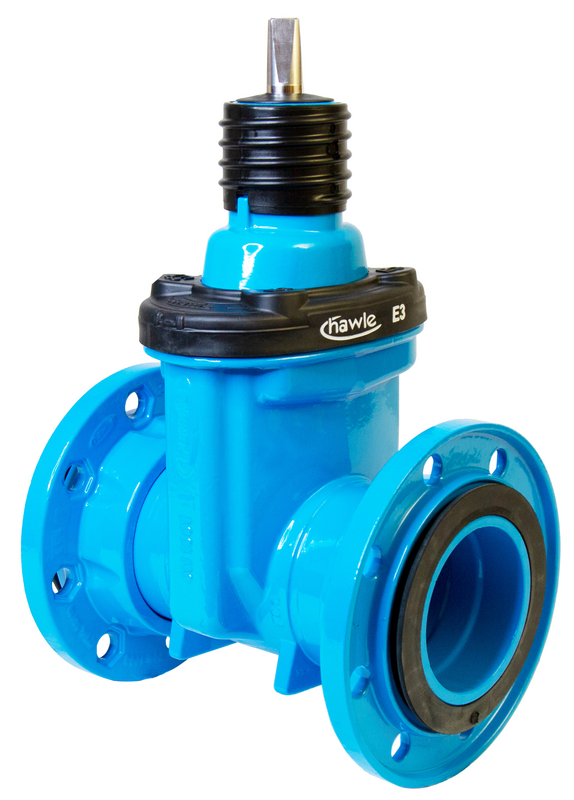

Exchange gate valve with loose flanges, long


Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge nut: brass Wedge: GJS-400, EPDM inside and outside acc. to KTW-BWGL for water Gasket: EPDM acc. to KTW-BWGL for water |
---|---|
Max. operating Pressure: | Potable water: 16 bar |
Medium | Water |
Apart from being used in new constructions, the Hawle exchange gate valve with restraint loose flange system is suitable mainly for the exchange of existing valves.
The flange gaskets are already included in the barrel gaskets. Therefore, no keying is required between the flanges.
Moreover, the loose flange system has some advantages in terms of storage. The flanges can be quickly and easily changed from PN 10 to PN 16 or vice versa. Apart from its real function as shut-off valve, the exchange gate valve can also be used as dismantling piece because of the integral loose flange system (no additional dismantling piece required).
The exchange gate valve can be shortened by 20 - 50 mm at each end, depending on the nominal width. Note: when the gate valve is shortened, a restraint connection is no longer ensured.
The valve can be operated via handwheel, extension spindle, or electric actuators (on request).
Flange dimensions acc. to EN 1092-2
Face-to-face dimension:
Group 15 acc. to DIN EN 558-1
Hawle E3 gate valves for potable water are suitable for commercially available heat transfer fluids with antifreeze additives and, as a rule, corrosion inhibitors.
Order Nr.
|
*) |
DN |
Description |
PN |
L |
Type / Outlet |
H |
Square of spindle |
Medium | Weight | Specification | Basket |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4110400000
|
40 | 10/16 | 240 mm | 200 mm | 12,3 mm | 8,46 kg | ||||||
4110500003
|
50 | 10/16 | 250 mm | Type E3 | 235 mm | 14,3 mm | 12,00 kg | |||||
4110650003
|
65 | 10/16 | 270 mm | Type E3 | 305 mm | 17,3 mm | 18,10 kg | |||||
4110800003
|
1) | 80 | 10/16 | 280 mm | Type E3 | 315 mm | 17,3 mm | 20,40 kg | ||||
4111000003
|
100 | 10/16 | 300 mm | Type E3 | 345 mm | 19,3 mm | 26,00 kg | |||||
4111250003
|
125 | 10/16 | 325 mm | Type E3 | 420 mm | 19,3 mm | 41,50 kg | |||||
4111500003
|
150 | 10/16 | 350 mm | Type E3 | 435 mm | 19,3 mm | 47,00 kg | |||||
4112000003
|
200 | 10 | 400 mm | Type E3 | 540 mm | 24,3 mm | 72,50 kg | |||||
4112000063
|
200 | 16 | 400 mm | Type E3 | 540 mm | 24,3 mm | 72,00 kg | |||||
4112500003
|
250 | 10 | 450 mm | 650 mm | 27,3 mm | 102,00 kg | ||||||
4112500063
|
250 | 16 | 450 mm | 650 mm | 27,3 mm | 102,00 kg | ||||||
4113000003
|
300 | 10 | 500 mm | Type E3 | 735 mm | 27,3 mm | 164,00 kg | |||||
4113000063
|
300 | 16 | 500 mm | Type E3 | 735 mm | 27,3 mm | 164,00 kg | |||||
4114000003
|
400 | 10 | 600 mm | Type E3 | 925 mm | 32,3 mm | 301,00 kg | |||||
4114000063
|
400 | 16 | 600 mm | Type E3 | 925 mm | 32,3 mm | 302,00 kg | |||||
8700000000
|
Surcharge for spindle bore | 0,00 kg |
-
Loose flange with special bore on request
-
Optional: The surcharge for the spindle bore (Ord. No. 8700000000) applies to gate valves up to DN 40.
