450-00

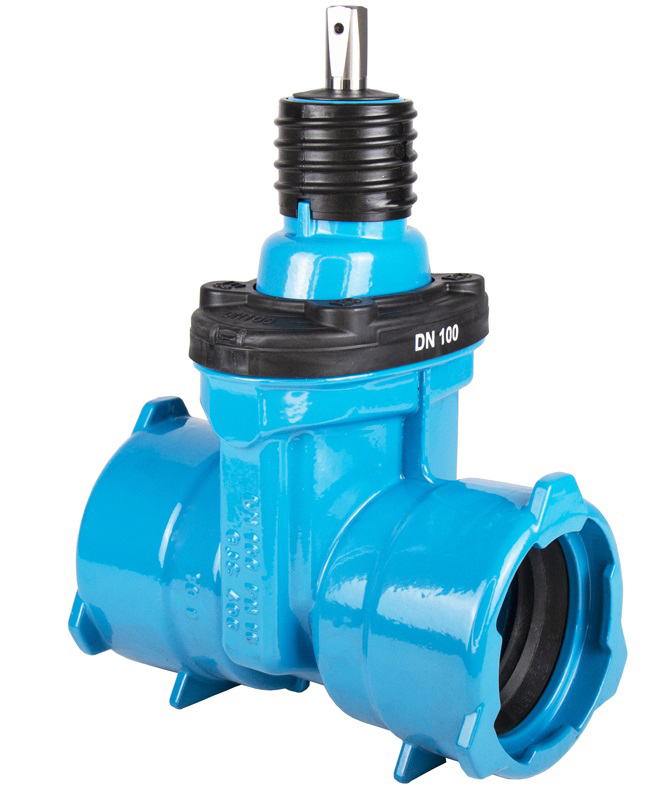

Gate valve "E3" with sockets - BAIO system

Product: Hawle type E3 (see Ord. No. 450-00) or equivalent
Resilient-seated shut-off valve, with BAIO double function sockets at both ends to establish form-locked connections with BAIO spigot ends and for connecting CI, steel, PE and PVC pipes.
Wedge and wedge nut fully coated with vulcanized elastomer. The wedge is connected to the wedge nut with a flexible link and embedded in elastomer. This snug fit dampens vibration during opening and closing of the wedge. Wedge nut thread length ≥ 1,2 x spindle diameter. Wedge guide of wear-free plastic with good sliding properties ensures low wear and minimum closing torques. Spindle with rolled thread and polished in the area of the O-ring sealing. Maintenance-free spindle sealing by 5-fold O-ring sealing. O-ring carrier connected corrosion-resistant to the fully coated bonnet by a double bayonet connection.
Low-friction bearing of the spindle on sliding disks of POM on both sides.
Extended edge protection of PE protects valve during storage and transportation.
Round thread connection at the bonnet for pinless fixing of Hawle extension spindle
Test regulations: EN 1074-1, EN 1074-2 and EN 12266-1

Material:
Body: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476-1 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)
Spindle: duplex stainless steel
Wedge nut: brass
Wedge: GJS-400, vulcanized with wedge nut with EPDM acc. to DVGW W 270 and UBA KTW for potable water

Medium: potable water
Max. operating pressure: 16 bar

DN 80

Product: Hawle type E3 (see Ord. No. 450-00) or equivalent
Resilient-seated shut-off valve, with BAIO double function sockets at both ends to establish form-locked connections with BAIO spigot ends and for connecting CI, steel, PE and PVC pipes.
Wedge and wedge nut fully coated with vulcanized elastomer. The wedge is connected to the wedge nut with a flexible link and embedded in elastomer. This snug fit dampens vibration during opening and closing of the wedge. Wedge nut thread length ≥ 1,2 x spindle diameter. Wedge guide of wear-free plastic with good sliding properties ensures low wear and minimum closing torques. Spindle with rolled thread and polished in the area of the O-ring sealing. Maintenance-free spindle sealing by 5-fold O-ring sealing. O-ring carrier connected corrosion-resistant to the fully coated bonnet by a double bayonet connection.
Low-friction bearing of the spindle on sliding disks of POM on both sides.
Extended edge protection of PE protects valve during storage and transportation.
Round thread connection at the bonnet for pinless fixing of Hawle extension spindle
Test regulations: EN 1074-1, EN 1074-2 and EN 12266-1

Material:
Body: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476-1 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)
Spindle: duplex stainless steel
Wedge nut: brass
Wedge: GJS-400, vulcanized with wedge nut with EPDM acc. to DVGW W 270 and UBA KTW for potable water

Medium: potable water
Max. operating pressure: 16 bar

DN 100

Product: Hawle type E3 (see Ord. No. 450-00) or equivalent
Resilient-seated shut-off valve, with BAIO double function sockets at both ends to establish form-locked connections with BAIO spigot ends and for connecting CI, steel, PE and PVC pipes.
Wedge and wedge nut fully coated with vulcanized elastomer. The wedge is connected to the wedge nut with a flexible link and embedded in elastomer. This snug fit dampens vibration during opening and closing of the wedge. Wedge nut thread length ≥ 1,2 x spindle diameter. Wedge guide of wear-free plastic with good sliding properties ensures low wear and minimum closing torques. Spindle with rolled thread and polished in the area of the O-ring sealing. Maintenance-free spindle sealing by 5-fold O-ring sealing. O-ring carrier connected corrosion-resistant to the fully coated bonnet by a double bayonet connection.
Low-friction bearing of the spindle on sliding disks of POM on both sides.
Extended edge protection of PE protects valve during storage and transportation.
Round thread connection at the bonnet for pinless fixing of Hawle extension spindle
Test regulations: EN 1074-1, EN 1074-2 and EN 12266-1

Material:
Body: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476-1 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)
Spindle: duplex stainless steel
Wedge nut: brass
Wedge: GJS-400, vulcanized with wedge nut with EPDM acc. to DVGW W 270 and UBA KTW for potable water

Medium: potable water
DN 125

Product: Hawle type E3 (see Ord. No. 450-00) or equivalent
Resilient-seated shut-off valve, with BAIO double function sockets at both ends to establish form-locked connections with BAIO spigot ends and for connecting CI, steel, PE and PVC pipes.
Wedge and wedge nut fully coated with vulcanized elastomer. The wedge is connected to the wedge nut with a flexible link and embedded in elastomer. This snug fit dampens vibration during opening and closing of the wedge. Wedge nut thread length ≥ 1,2 x spindle diameter. Wedge guide of wear-free plastic with good sliding properties ensures low wear and minimum closing torques. Spindle with rolled thread and polished in the area of the O-ring sealing. Maintenance-free spindle sealing by 5-fold O-ring sealing. O-ring carrier connected corrosion-resistant to the fully coated bonnet by a double bayonet connection.
Low-friction bearing of the spindle on sliding disks of POM on both sides.
Extended edge protection of PE protects valve during storage and transportation.
Round thread connection at the bonnet for pinless fixing of Hawle extension spindle
Test regulations: EN 1074-1, EN 1074-2 and EN 12266-1

Material:
Body: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476-1 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)
Spindle: duplex stainless steel
Wedge nut: brass
Wedge: GJS-400, vulcanized with wedge nut with EPDM acc. to DVGW W 270 and UBA KTW for potable water

Medium: potable water
Max. operating pressure: 16 bar
BAIO sockets including BAIO lip seals (BLD) for water, suitable for: BAIO spigot ends, CI pipes acc. to EN 545, steel pipes with outside diameter of CI pipe, PE electrofusion fitting, steel welding fit

DN 150

Product: Hawle type E3 (see Ord. No. 450-00) or equivalent
Resilient-seated shut-off valve, with BAIO double function sockets at both ends to establish form-locked connections with BAIO spigot ends and for connecting CI, steel, PE and PVC pipes.
Wedge and wedge nut fully coated with vulcanized elastomer. The wedge is connected to the wedge nut with a flexible link and embedded in elastomer. This snug fit dampens vibration during opening and closing of the wedge. Wedge nut thread length ≥ 1,2 x spindle diameter. Wedge guide of wear-free plastic with good sliding properties ensures low wear and minimum closing torques. Spindle with rolled thread and polished in the area of the O-ring sealing. Maintenance-free spindle sealing by 5-fold O-ring sealing. O-ring carrier connected corrosion-resistant to the fully coated bonnet by a double bayonet connection.
Low-friction bearing of the spindle on sliding disks of POM on both sides.
Extended edge protection of PE protects valve during storage and transportation.
Round thread connection at the bonnet for pinless fixing of Hawle extension spindle
Test regulations: EN 1074-1, EN 1074-2 and EN 12266-1

Material:
Body: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476-1 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)
Spindle: duplex stainless steel
Wedge nut: brass
Wedge: GJS-400, vulcanized with wedge nut with EPDM acc. to DVGW W 270 and UBA KTW for potable water

Medium: potable water

Product: Hawle type E3 (see Ord. No. 450-00) or equivalent
Resilient-seated shut-off valve, with BAIO double function sockets at both ends to establish form-locked connections with BAIO spigot ends and for connecting CI, steel, PE and PVC pipes.
Wedge and wedge nut fully coated with vulcanized elastomer. The wedge is connected to the wedge nut with a flexible link and embedded in elastomer. This snug fit dampens vibration during opening and closing of the wedge. Wedge nut thread length ≥ 1,2 x spindle diameter. Wedge guide of wear-free plastic with good sliding properties ensures low wear and minimum closing torques. Spindle with rolled thread and polished in the area of the O-ring sealing. Maintenance-free spindle sealing by 5-fold O-ring sealing. O-ring carrier connected corrosion-resistant to the fully coated bonnet by a centre flange.
Low-friction bearing of the spindle on sliding disks of POM on both sides and an additional axial ball bearing.
Extended edge protection of PE protects valve during storage and transportation.
Pin hole in the spindle for connection of extension spindle.
Test regulations: EN 1074-1, EN 1074-2 and EN 12266-1

Material:
Body: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476-1 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)
Spindle: duplex stainless steel
Wedge nut: brass
Wedge: GJS-400, vulcanized with wedge nut with EPDM acc. to DVGW W 270 and UBA KTW for potable water

Medium: potable water
Max. operating pressure 16 bar

DN 250

Product: Hawle type E3 (see Ord. No. 450-00) or equivalent
Resilient-seated shut-off valve, with BAIO double function sockets at both ends to establish form-locked connections with BAIO spigot ends and for connecting CI, steel, PE and PVC pipes.
Wedge and wedge nut fully coated with vulcanized elastomer. The wedge is connected to the wedge nut with a flexible link and embedded in elastomer. This snug fit dampens vibration during opening and closing of the wedge. Wedge nut thread length ≥ 1,2 x spindle diameter. Wedge guide of wear-free plastic with good sliding properties ensures low wear and minimum closing torques. Spindle with rolled thread and polished in the area of the O-ring sealing. Maintenance-free spindle sealing by 5-fold O-ring sealing. O-ring carrier connected corrosion-resistant to the fully coated bonnet by a centre flange.
Low-friction bearing of the spindle on sliding disks of POM on both sides and an additional axial ball bearing.
Extended edge protection of PE protects valve during storage and transportation.
Pin hole in the spindle for connection of extension spindle.
Test regulations: EN 1074-1, EN 1074-2 and EN 12266-1

Material:
Body: GJS-400, corrosion protection due to epoxy powder coating inside and outside acc. to quality assurance RAL-GZ 662 of the Gütegemeinschaft Schwerer Korrosionsschutz GSK (Quality Association for Heavy-Duty Corrosion Protection) considering DIN 3476-1 (coating thickness: min. 0.25 mm, zero-porosity at 3 kV, adhesion inside and outside min. 12 N/mm² after exposure to hot water, proof of suitability for potable water applications, external monitoring through neutral testing institute)
Spindle: duplex stainless steel
Wedge nut: brass
Wedge: GJS-400, vulcanized with wedge nut with EPDM acc. to DVGW W 270 and UBA KTW for potable water

Medium: potable water
Max. operating pressure: 16 bar

DN 300
