270-01

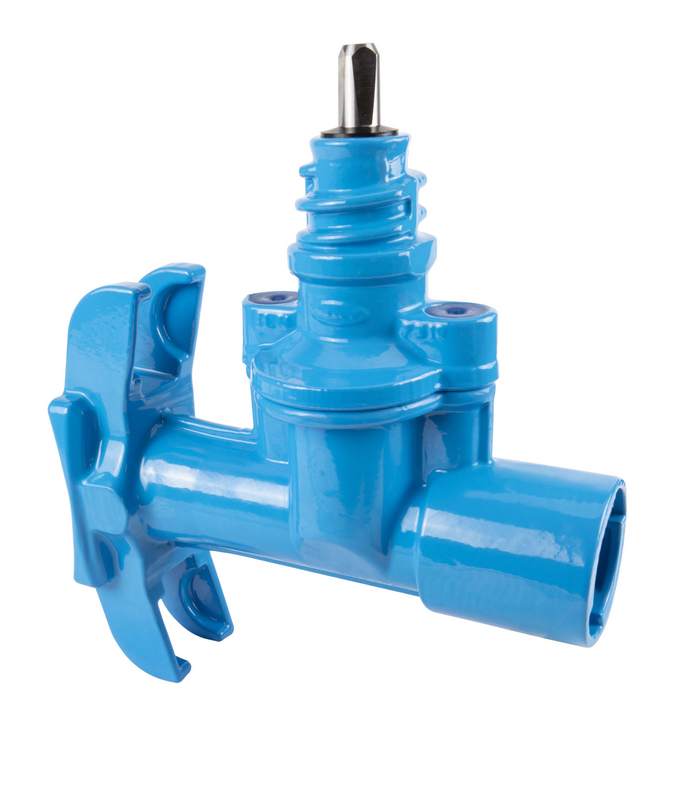

Valve saddle with ZAK® outlet
| Material: |
Body and bonnet: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Shut-off plug: brass, with cured-on EPDM acc. to KTW-BWGL for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Hawle valve saddles are to be used for lateral installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 309-00, 310-00, 311-00, 311-01, 311-02, 311-03) of the appropriate nominal width.
In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.
In combination with fittings the lateral ZAK® outlet is used to connect service lines after drilling.
Spindle square: 12.3 mm
|
Order Nr.
|
Operating pressure max. |
Description |
L |
B |
H |
Square of spindle |
Borehole max. |
Type of pipe |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2701460000
|
16 bar | 241 mm | 105 mm | 289 mm | 12,3 mm | 36 mm | Cast iron|Steel|AC | ZAK 46 | 5,50 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
Further information
|
|---|
| General instruction for Pipe drilling saddle |
